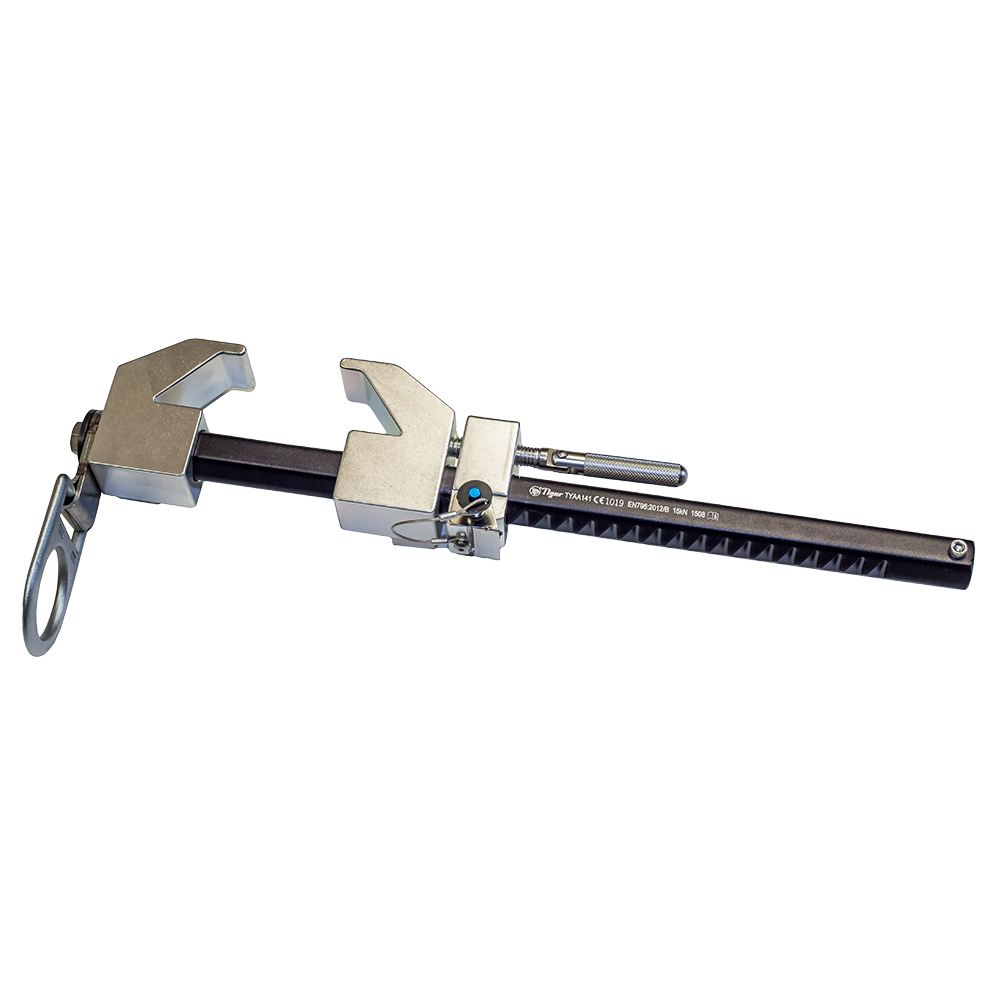

Eyecatcher Beam Clamp

Beam clamp for vertical and horizontal use

Product number: 1152

Very sturdy and reliable beam clamp suitable for I- and HE-beams, both for horizontal and vertical fixing.

Horizontal and vertical

Beam width 6.4 - 45 cm

max 140 kg

Standards
EN 795 : 2012

0 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

A temporary anchorage point that can easily be moved around on I and HE beams. Normally, beam clamps must be mounted on horizontal beams above the user, but this can also be mounted on vertical beams.

Items

Reference
Net weight (kg)
Country of origin
30213 2.2 Netherlands

Technical data

Product properties
Brand: Eyecatcher
Material: Steel
Maximum load (kg): 140
Maximum number of users: 1
EN-standard: EN 795 : 2012
Annual inspection: Yes, every 12 months
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes
Fall indicator: No
Energy absorber: No
Adjustable under load: No

Product attachments

  • Eyecatcher Beam Clamp user manual (EN).pdf
    download
  • Eyecatcher Beam Clamp user manual (NO).pdf
    download
A temporary anchorage point that can easily be moved around on I and HE beams. Normally, beam clamps must be mounted on horizontal beams above the user, but this can also be mounted on vertical beams.
