Accessories Tripods & Davits
AAK Safety AS

IKAR PLW

Winch

Product number: 3458

A winch for lifting or descending a person or load.

30 meters

Approved for lifting of person and load

0 In stock

Quantity:

Print

AAK Safety webshop?

Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!

Product description

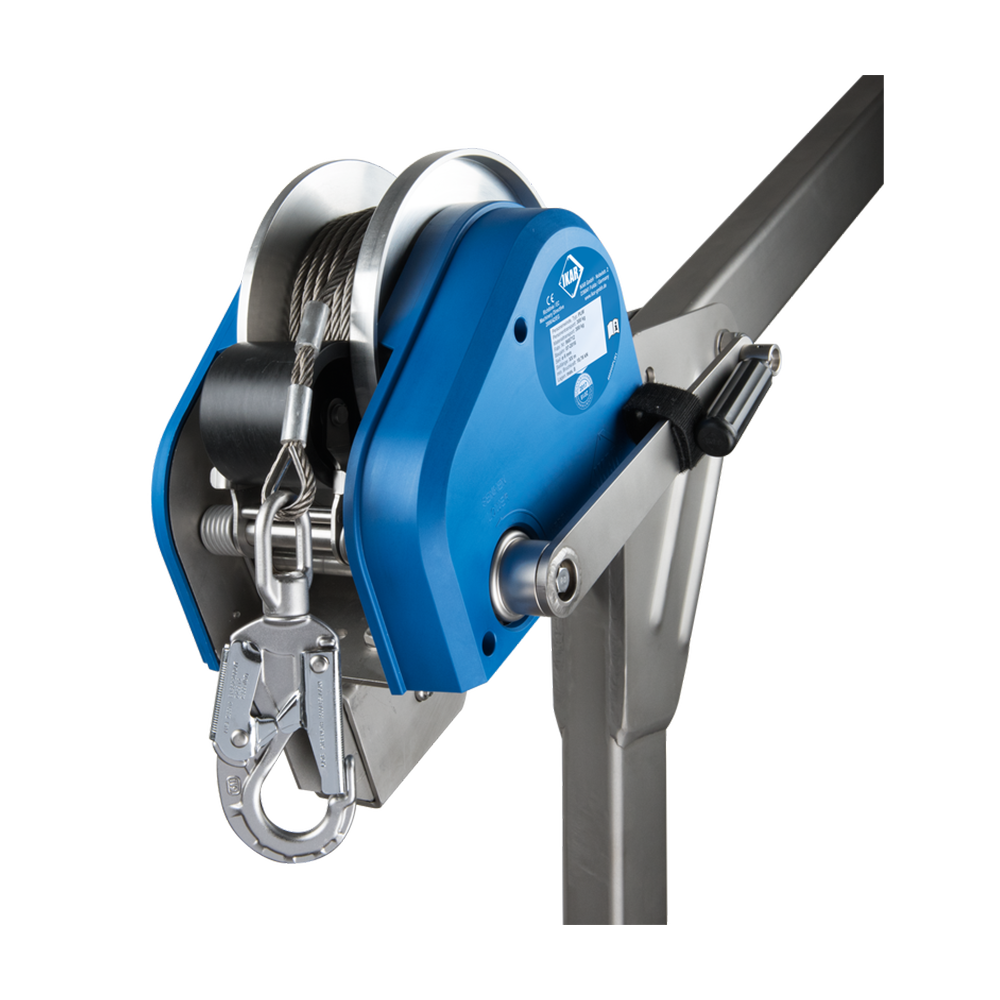

PLW from IKAR is a winch that is approved for lifting and descending both people and loads. The winch is used in cases where the risk of falls in shafts, tunnels, wells or sewage systems is high. PLW can be mounted on either a tripod, davit arm or block to be able to safely lift and lower the load.

Items

Reference
Size (m)
Net weight (kg)
Country of origin
28425-05 30 18.5 Germany

Technical data

Product properties
Brand: IKAR
Material: Steel, Stainless steel
Maximum load (kg): 300
Notified body: 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany
Annual inspection: Yes, every 12 months
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Stainless steel cable, 6mm
Maximum rope length (m): 30
Fall indicator: No
Minimum breaking strength - MBS (kN): 18.76
Energy absorber: No
Functions: Descend function, Lifting function, Vinch function
Lifting mechanics: Hand crank
Adjustable under load: Yes

Compatible products

Tripod DB-A3

The IKAR Tripod is an aid for lifting and lowering in places where it is difficult to find securing points directly above the workplace.

Tripod DB-A2

A tripod from IKAR that is used as an anchoring point at confined spaces. DB-A2 has adjustable legs and foldable rubber feet.

IKAR ASS-3

An anchor point for work in a confined space. Can be used with both winch and rescue block.

IKAR ASS-1

Utviklet for stasjonær bruk i sikkerhets- og redningssaker for to personer, samt for løft og senking av last.
