Anchorage points
AAK Safety AS

PLFIXV

Anchoring point

Product number: 1147

This anchoring point PLFIXV is suitable for concrete and steel constructions.

For concrete and steel constructions

Double 14 mm hole

Standards
EN 795 : 2012

4 In stock

Quantity:

Print

AAK Safety webshop?

Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!

Product description

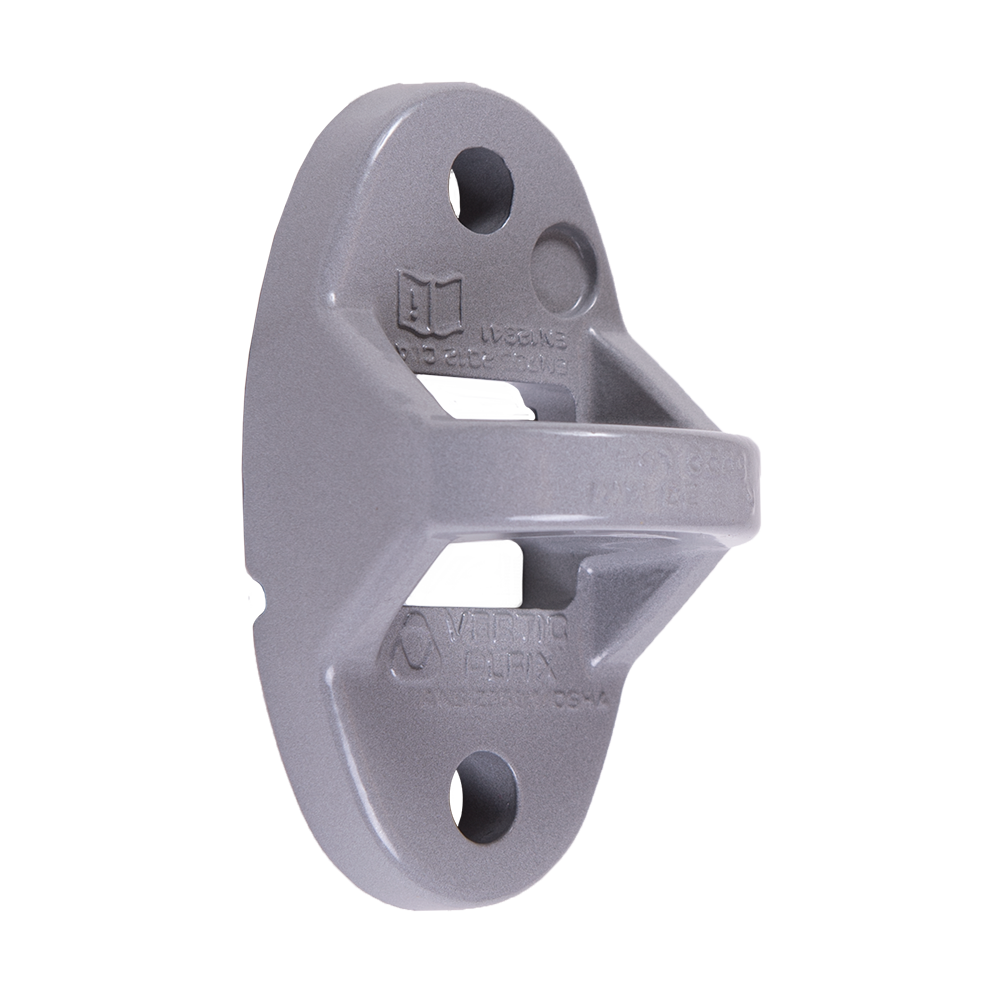

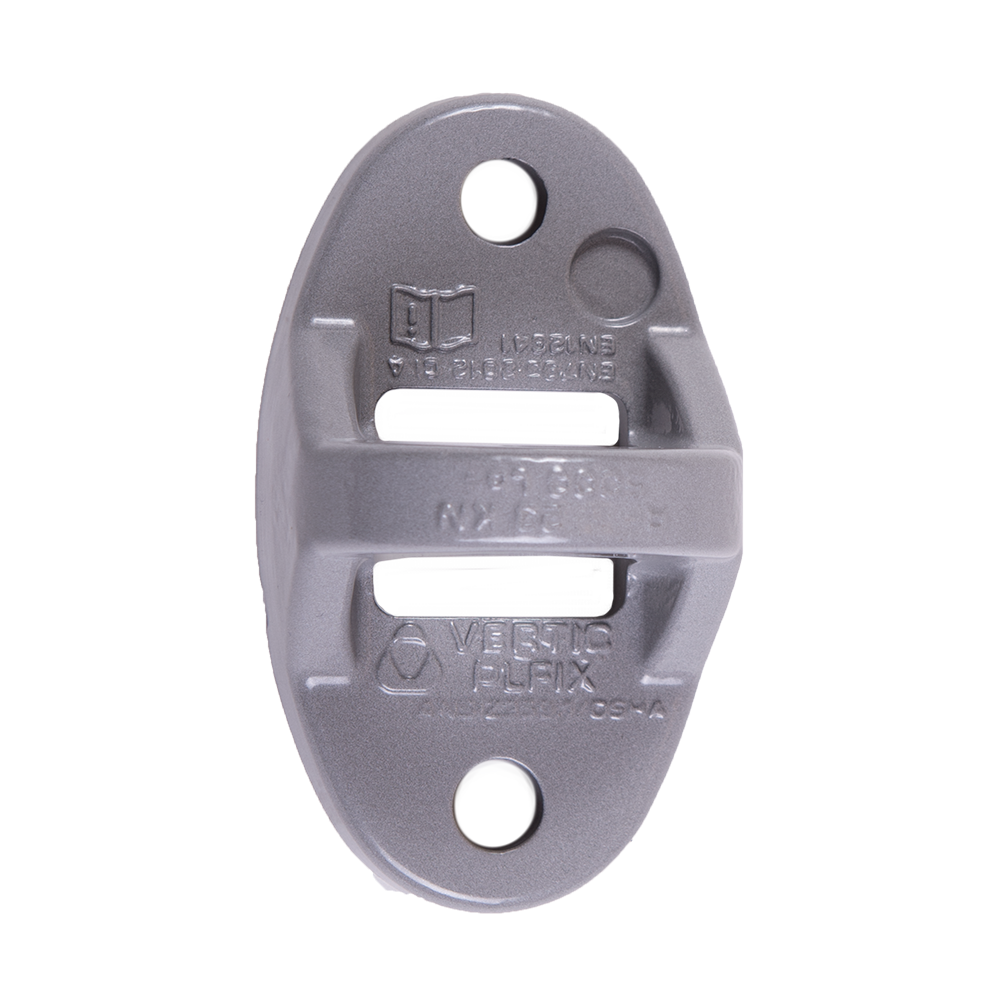

PLFIXV from Vertic is an anchorage plate in cast aluminum and is suitable for concrete and steel constructions. The anchorage point has a double 14 mm hole and is installed with dubbel M12.

Items

Reference
Length (cm)
Width (cm)
Net weight (kg)
Country of origin
30057 135 80 0.31 France

Technical data

Product properties
Brand: Vertic
Material: Aluminum
Maximum number of users: 1
Minimum working temperature (c): -20
Maximum working temperature (c): 50
EN-standard: EN 795 : 2012
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Fall indicator: No
Minimum breaking strength - MBS (kN): 23
Energy absorber: No
Adjustable under load: No
PLFIXV from Vertic is an anchorage plate in cast aluminum and is suitable for concrete and steel constructions. The anchorage point has a double 14 mm hole and is installed with dubbel M12.
