Eyecatcher Rebar Steel Anchor - AT187

Anchoring point

Product number: 3644

Rebar Steel Anchor is an anchoring point that is installed on ribbed bars and can be used to provide protection of three users at the same time.

Rebar size 18-32 mm

Weight only 1,82 kg

For three users

Standards
EN 795 : 2012

1 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

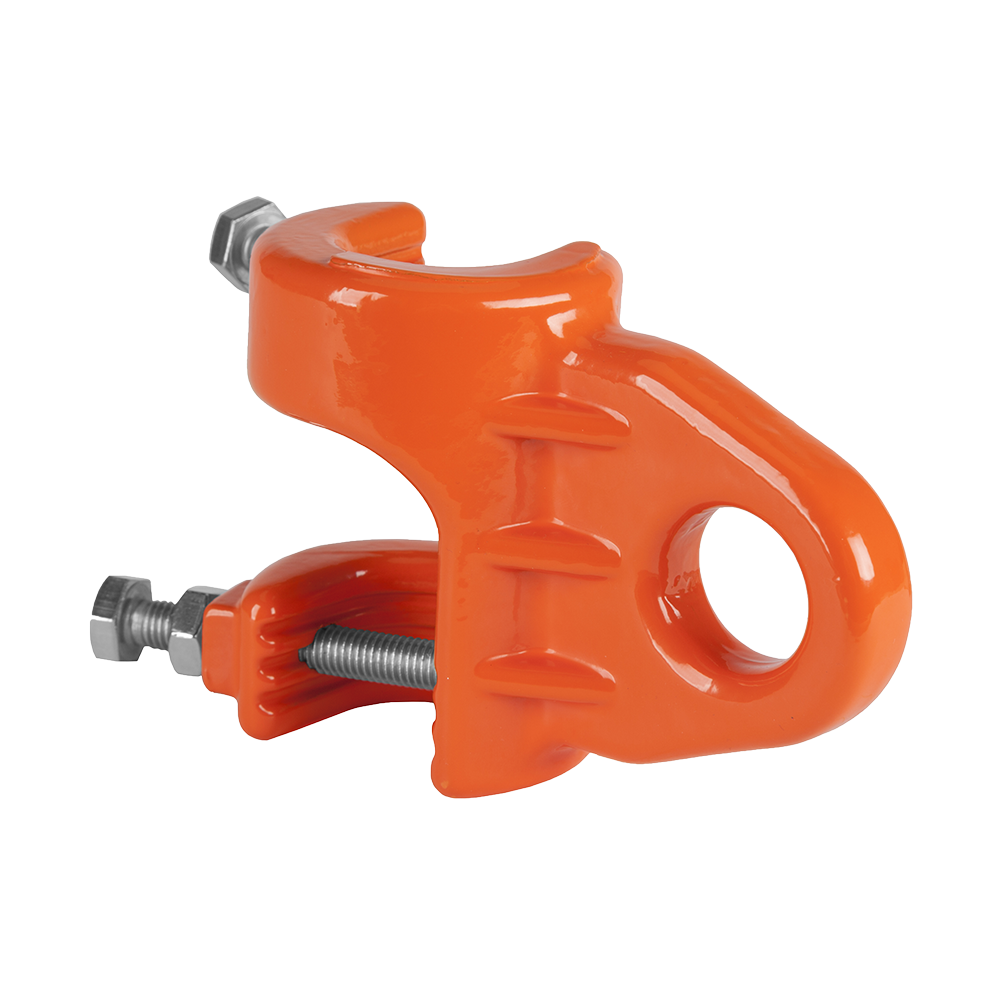

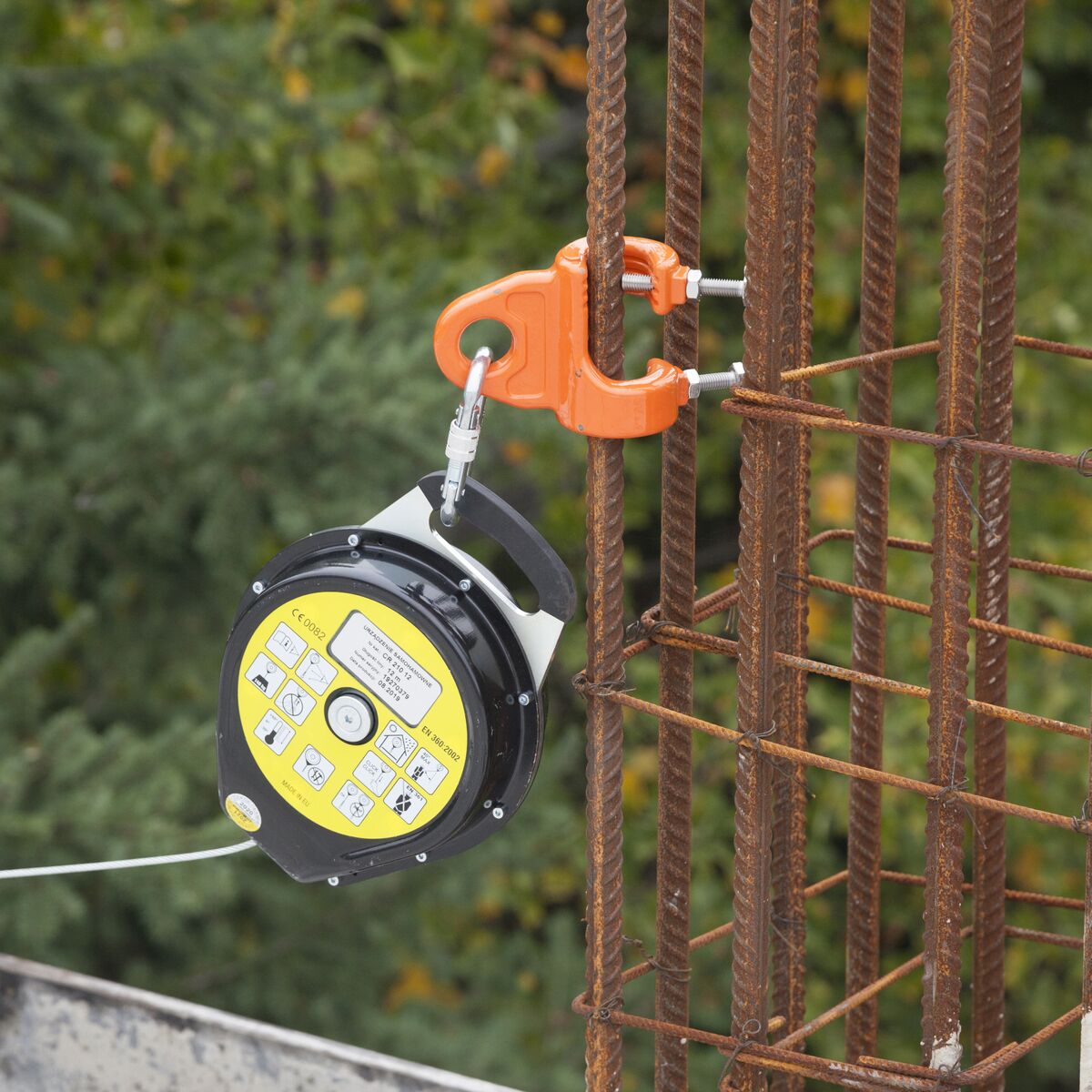

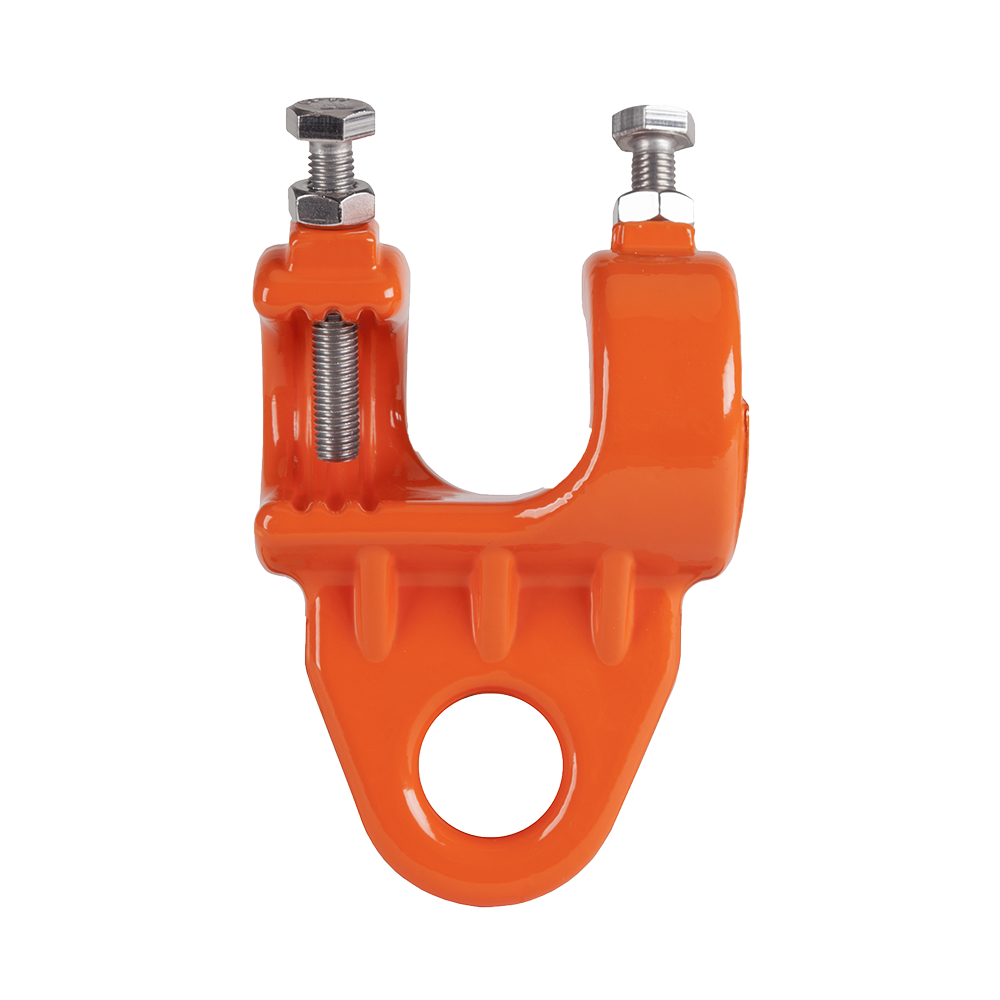

Rebar Steel Anchor from Eyecatcher is a temporary anchor point that is fastened to ribbed bars. It is easy to mount on and off. The anchorage can be used by three people at the same time and has a breaking strength of 30kN.

Fits ribbed bars with a diameter of 18 to 32 mm.

Items

Reference
Net weight (kg)
Country of origin
30039 1.82 Netherlands

Technical data

Product properties
Brand: Eyecatcher
Material: Steel
Maximum number of users: 2
EN-standard: EN 795 : 2012
Notified body: 0082, SAS APAVE SUDEUROPE - CS 601193, 13322 Marseille cedex 16, France
RFID: No
Declaration of Conformity: Yes
Fall indicator: No
Minimum breaking strength - MBS (kN): 30
Energy absorber: No
Adjustable under load: No

Product attachments

Rebar Steel Anchor from Eyecatcher is a temporary anchor point that is fastened to ribbed bars. It is easy to mount on and off. The anchorage can be used by three people at the same time and has a breaking strength of 30kN.

Fits ribbed bars with a diameter of 18 to 32 mm.
