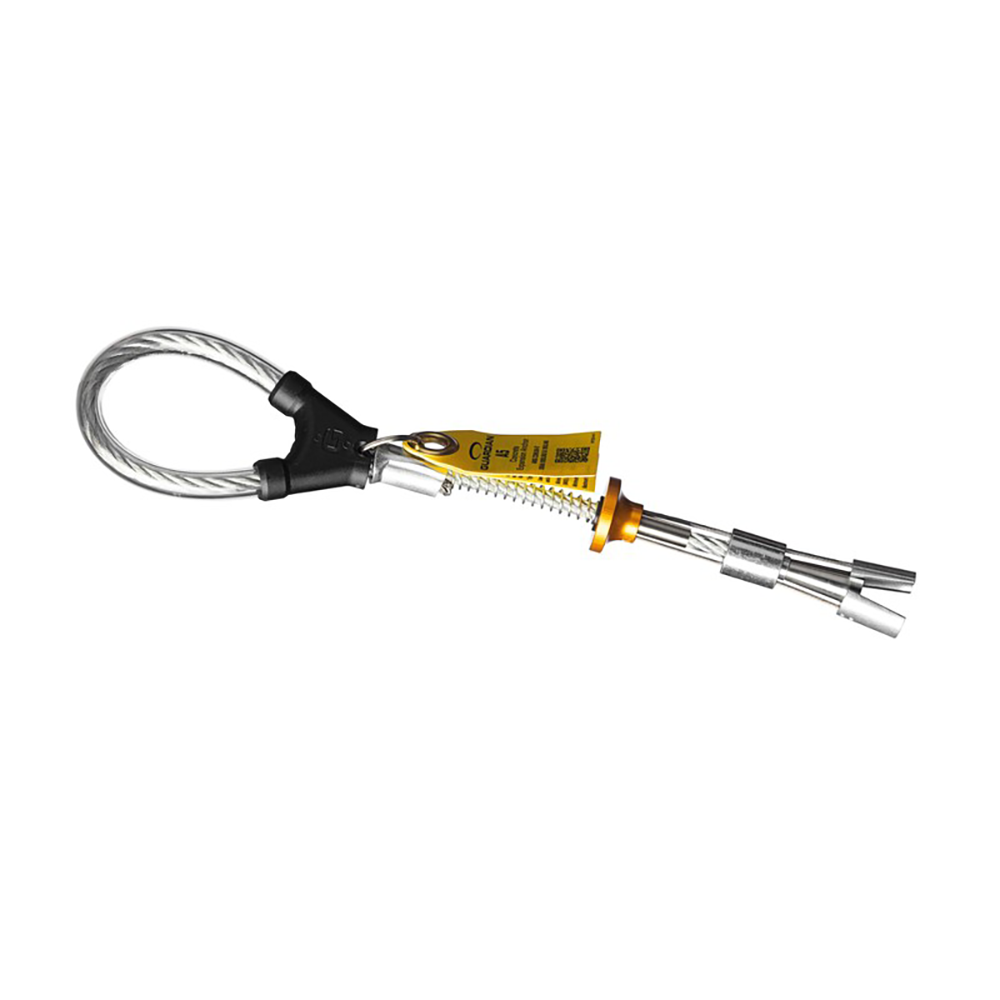

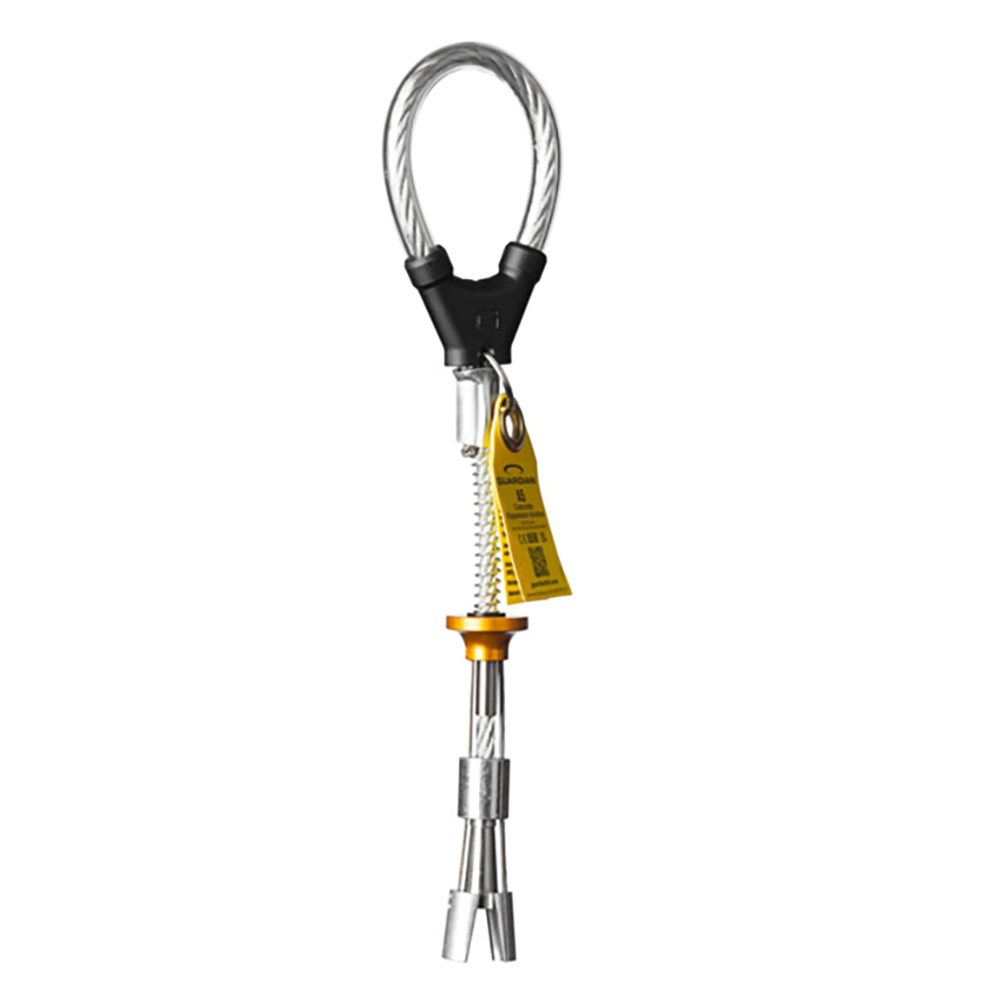

Guardian A5 Concrete Expansion Anchor

Anchorage point A5 Concrete

Product number: 1148

A portable anchorage point for concrete.

Portable

For concrete

Mounted in holes of 19 mm in diameter

Standards
EN 795 : 2012

2 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

The A5 Concrete Expansion Anchor is a
popular anchorage connector for concrete
substrates. Its ergonomic thumb rest makes
installation fast, easy, and comfortable to use.

Items

Reference
Net weight (kg)
Country of origin
30051 0.25 United States

Technical data

Product properties
Brand: Guardian
Material: Aluminum , Stainless steel
Min/Max load (kg): 46 - 190
Maximum load (kg): 190
Maximum number of users: 1
Min/Max working temperature (c): -34 - 54
EN-standard: EN 795 : 2012
Notified body: 0598, SGS Fimko Ltd, Takomotie 8, FI-00380 Helsinki, Finland, 2756, INCDPM National Institute for Research and Development in Environmental Protection, 294 Splaiul Independenței Blv, district 6, RO-060031 Bucharest, Romania
Annual inspection: Yes, every 12 months
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Fall indicator: No
Minimum breaking strength - MBS (kN): 22
Energy absorber: No
Mechanics: Expandable locking
Adjustable under load: No

Product attachments

The A5 Concrete Expansion Anchor is a
popular anchorage connector for concrete
substrates. Its ergonomic thumb rest makes
installation fast, easy, and comfortable to use.
