Pulleys
AAK Safety AS

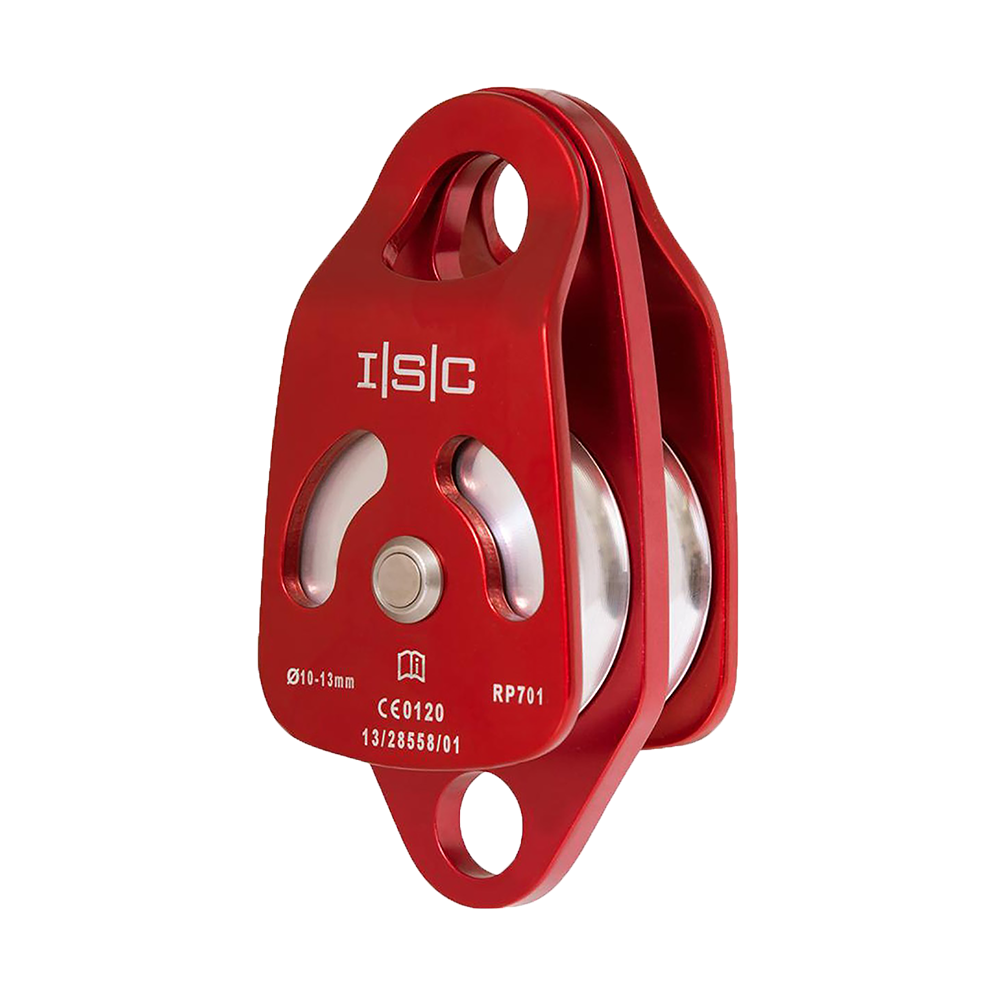

Double Rescue Pulley

Large Double Pulley

Product number: 3469

An aluminum pulley, adapted for use in rescue. Double Rescue Pulley has a high maximum load and has free wheels that are not lockable.

Can take a maximal loud of 800 kg

Fits ropes with a diameter between 10 and 13 mm

Breaking strength 40kN

Standards
EN 12278 : 2007

16 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

Double Rescue Pulley from ISC has a bushed, standard free-running wheel (non-locking). This is ideal for situations which do not require increased friction levels for example, when lowering lighter users or loads.

The equipment is approved for safe working load of 800 kg and minimum breaking load of remarkable 40kN.

Items

Reference
Net weight (kg)
Country of origin
25380 0.5 United Kingdom

Technical data

Product properties
Brand: ISC
Material: Aluminum
Maximum load (kg): 800
Maximum number of users: 2
EN-standard: EN 12278 : 2007
Notified body: 0321, SATRA Technology Centre, Wyndham Way, Telford Way, NN16 8SD Kettering, Northamptonshire, United Kingdom
Annual inspection: Yes, every 12 months
Life span: 10 years
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Fall indicator: No
Minimum breaking strength - MBS (kN): 40
Energy absorber: No
Functions: Descend function, Lifting function
Mechanics: Bearing and cam locking
Adjustable under load: Yes

Product attachments

  • Double Rescue Pulley and Double Progress Capture Pulley - version 1
    download
  • Double Rescue Pulley - EU 22022019
    download
Double Rescue Pulley from ISC has a bushed, standard free-running wheel (non-locking). This is ideal for situations which do not require increased friction levels for example, when lowering lighter users or loads.

The equipment is approved for safe working load of 800 kg and minimum breaking load of remarkable 40kN.
