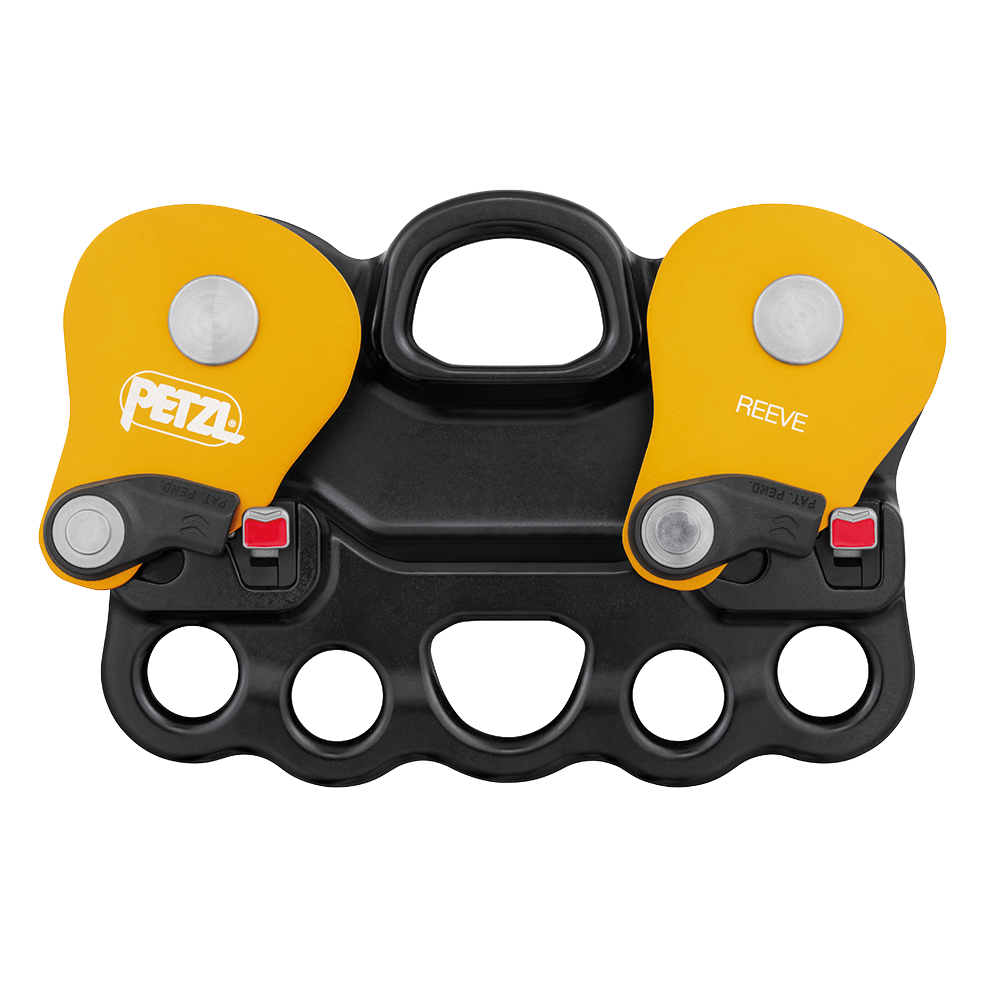

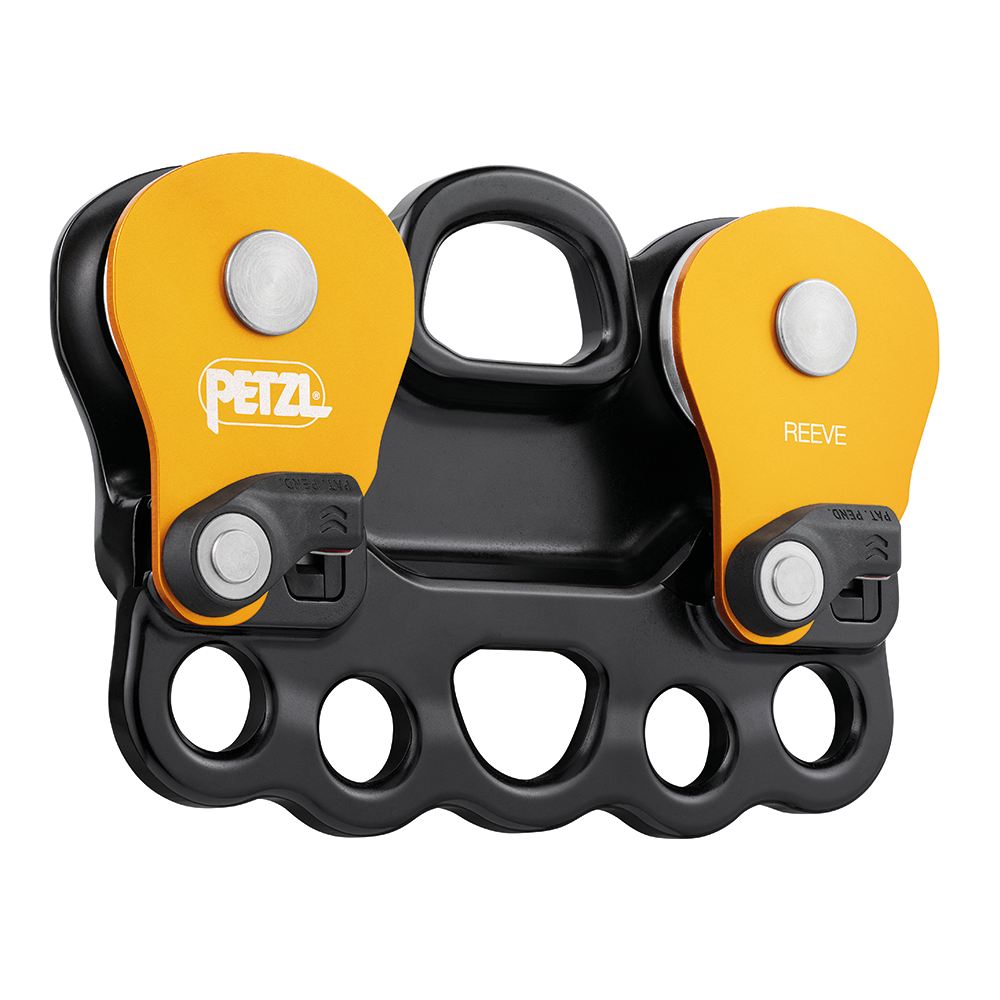

Petzl Reeve
Carriage pulley for rescue on a tensioned highline
Product number: 10570
Combining two pulleys and a rigging plate, the REEVE carriage pulley is an integrated solution designed to simplify setting up rescue systems on tensioned highlines.
Efficiency in complex rigging systems
Extremely high load capacity
Versatility and compatibility
Standards
Do you miss something?
Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.
It’s compact design limits the number of connectors and the height of the system.
Two large-diameter sheaves mounted on sealed ball bearings provide excellent efficiency when moving. Multiple connection holes to directly attach ropes, slings, or carabiners, allowing for better organization.
An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.

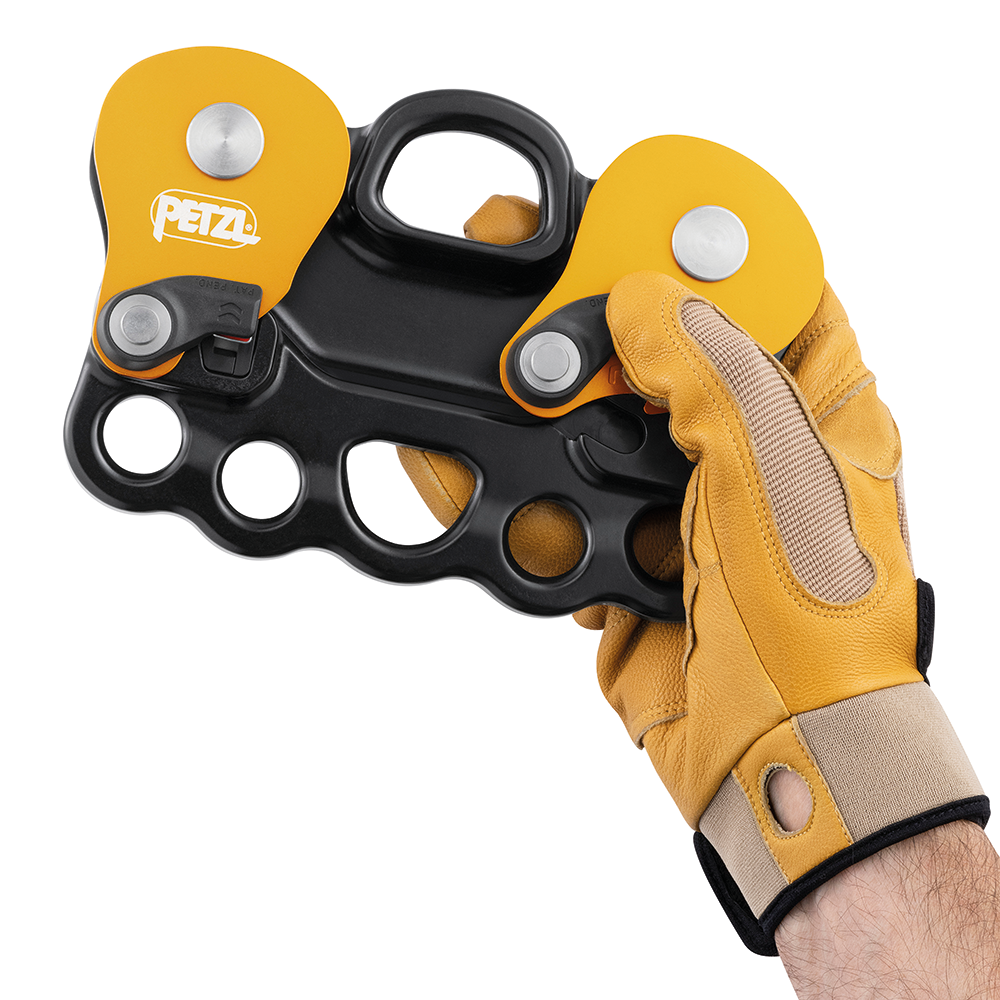

Triple-action opening of moving side plates, possible even with gloves
Red indicators provide a visual warning when the side plates are not correctly locked
Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
Possible to rig the system before installing it on the main line

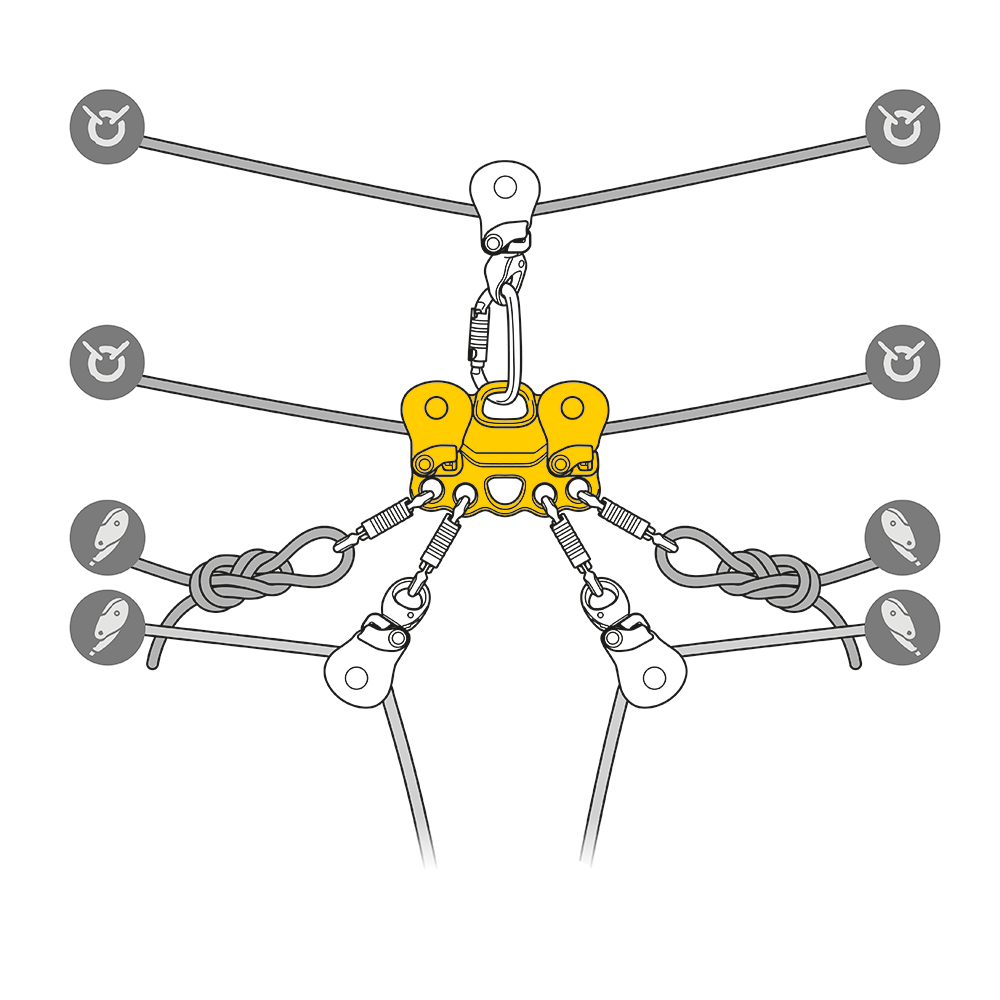

System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance

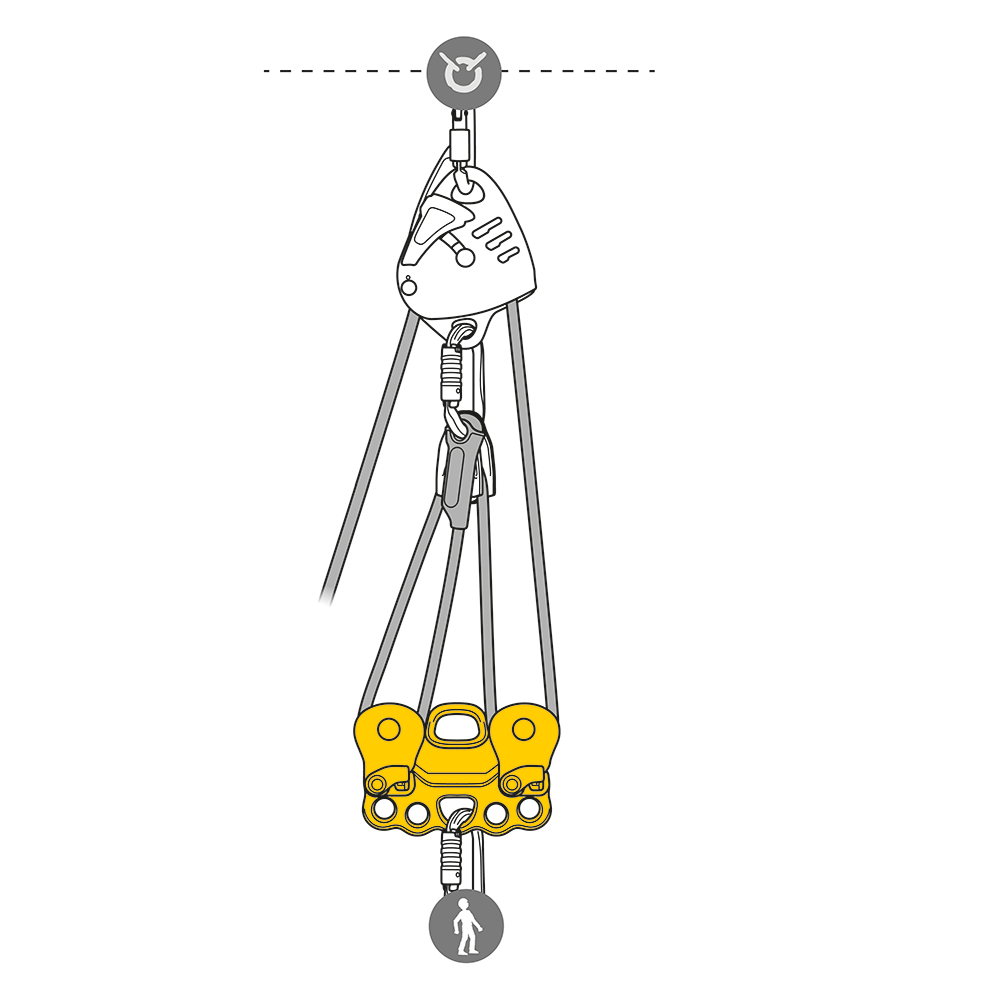

Pulley can be used in a haul system

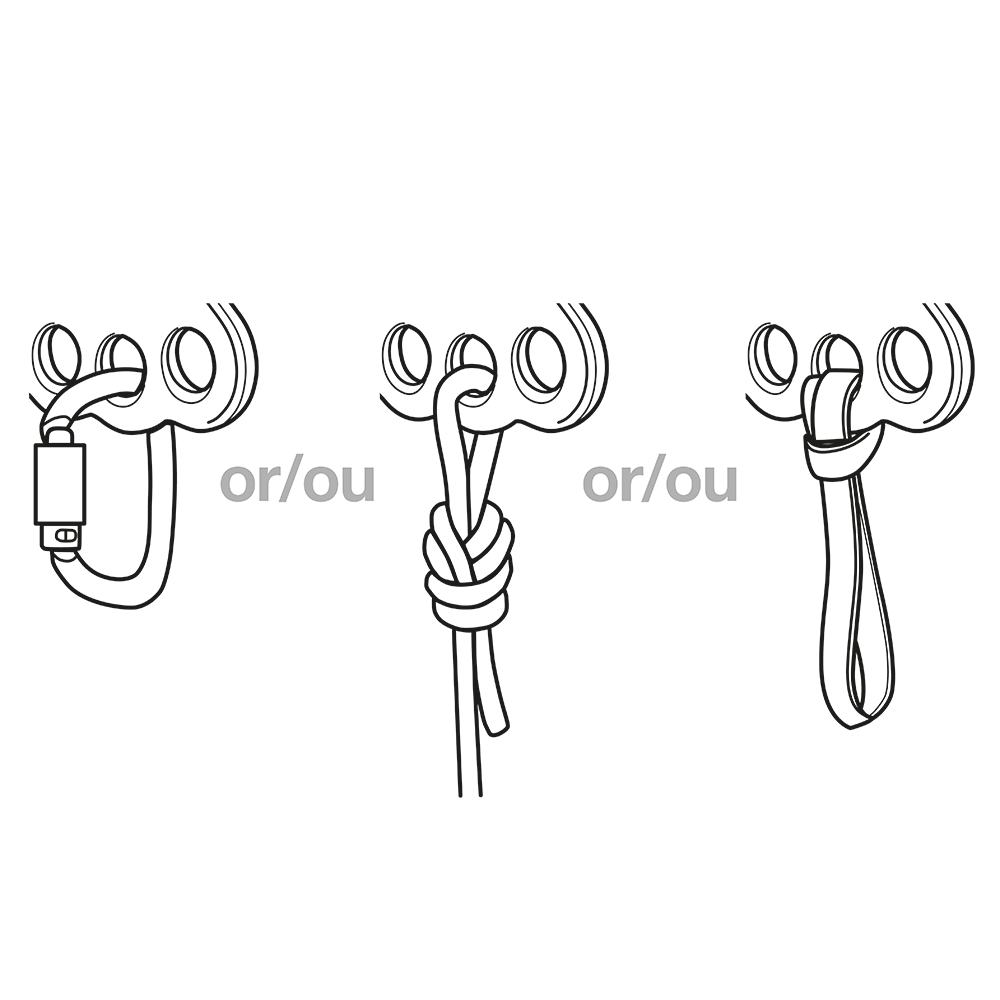

Hole design allows ropes or slings to be threaded for direct connection
19 mm holes allow locking sleeves of most carabiners to pass through
The odd number of attachment holes enables the system to be centered and balanced
Up to three people can be connected at the same time
Efficiency: 95 %
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave type: Sealed Ball Bearings
Sheave diameter: 38 mm

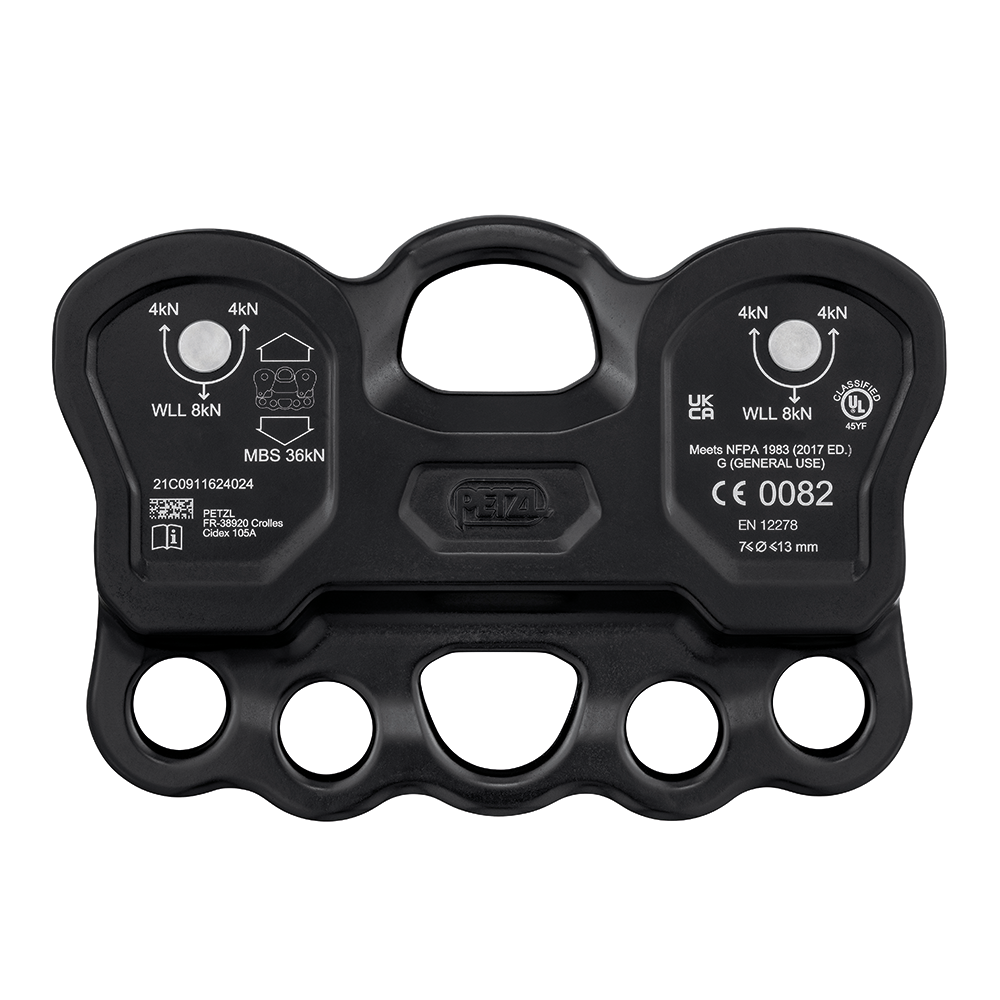

Working Load Limit: 4 x 2 kN = 8
