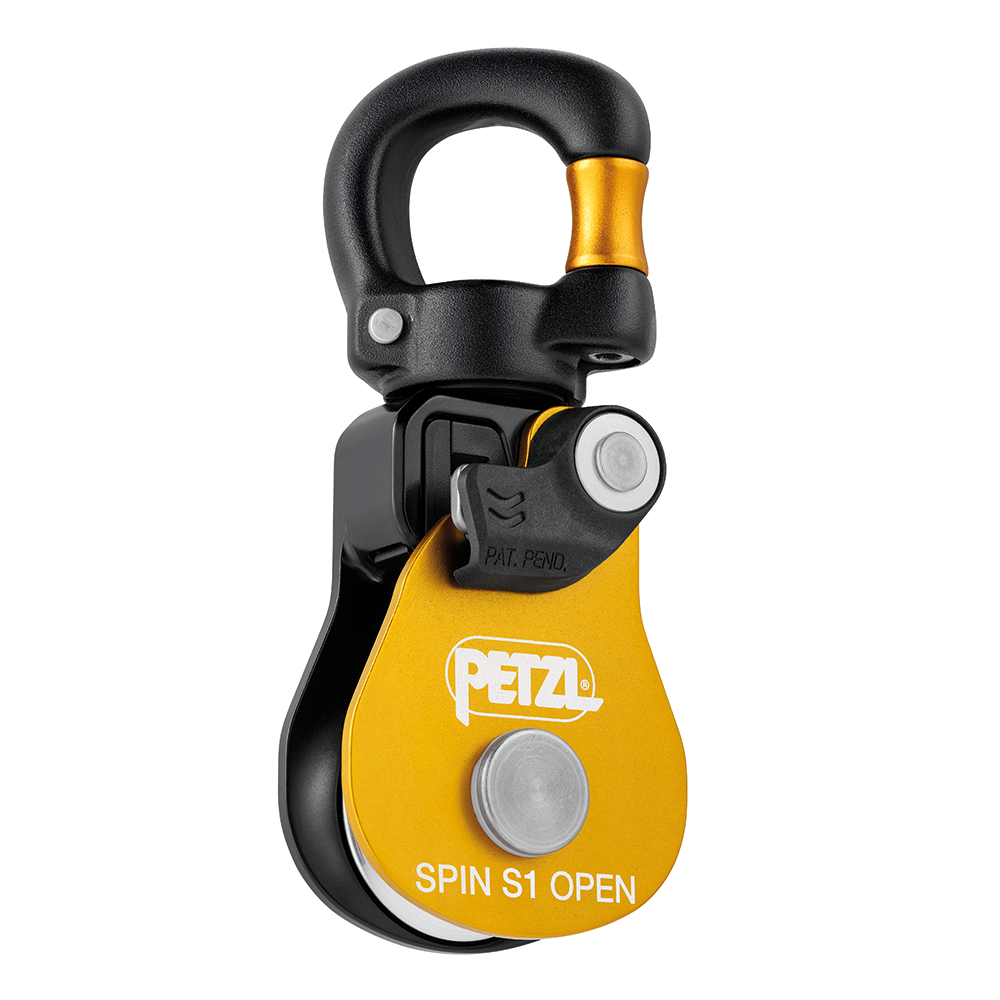

Petzl Spin S1 Open
Compact single pulley with gated swivel
Product number: 10576
Possible to open, even when attached to the anchor, the SPIN S1 OPEN pulley is designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines.
Efficiency: 91 %
Triple-action opening of the moving side plate is quick and easy, even with gloves
Optimal efficiency
Standards
AAK Safety webshop?
Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!
Compact, reducing weight and bulk, which is especially useful during technical rescue. The sheave with sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load. The opening gate on the swivel makes the pulley compatible with a wide variety of products (tripod, REEVE pulley, PAW rigging plates, and more) reducing bulk during set up.

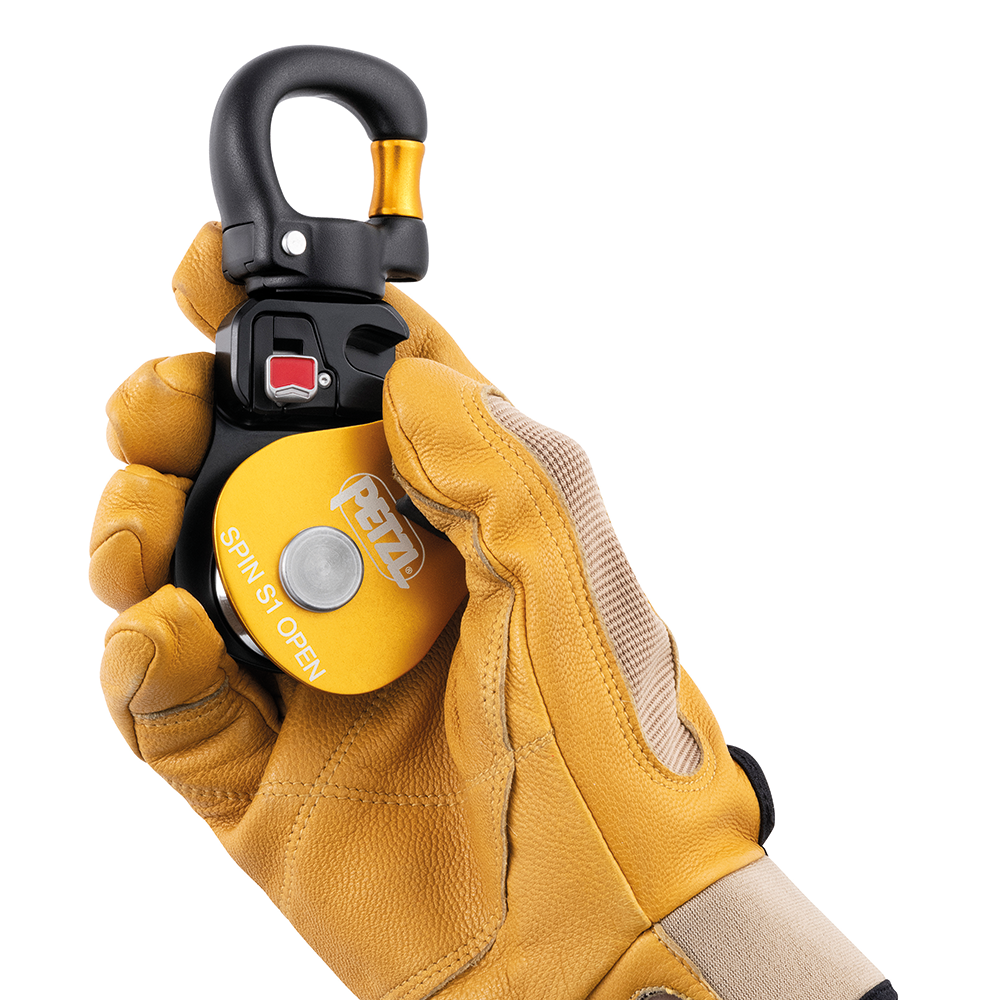

Triple-action opening of the moving side plate is quick and easy, even with gloves

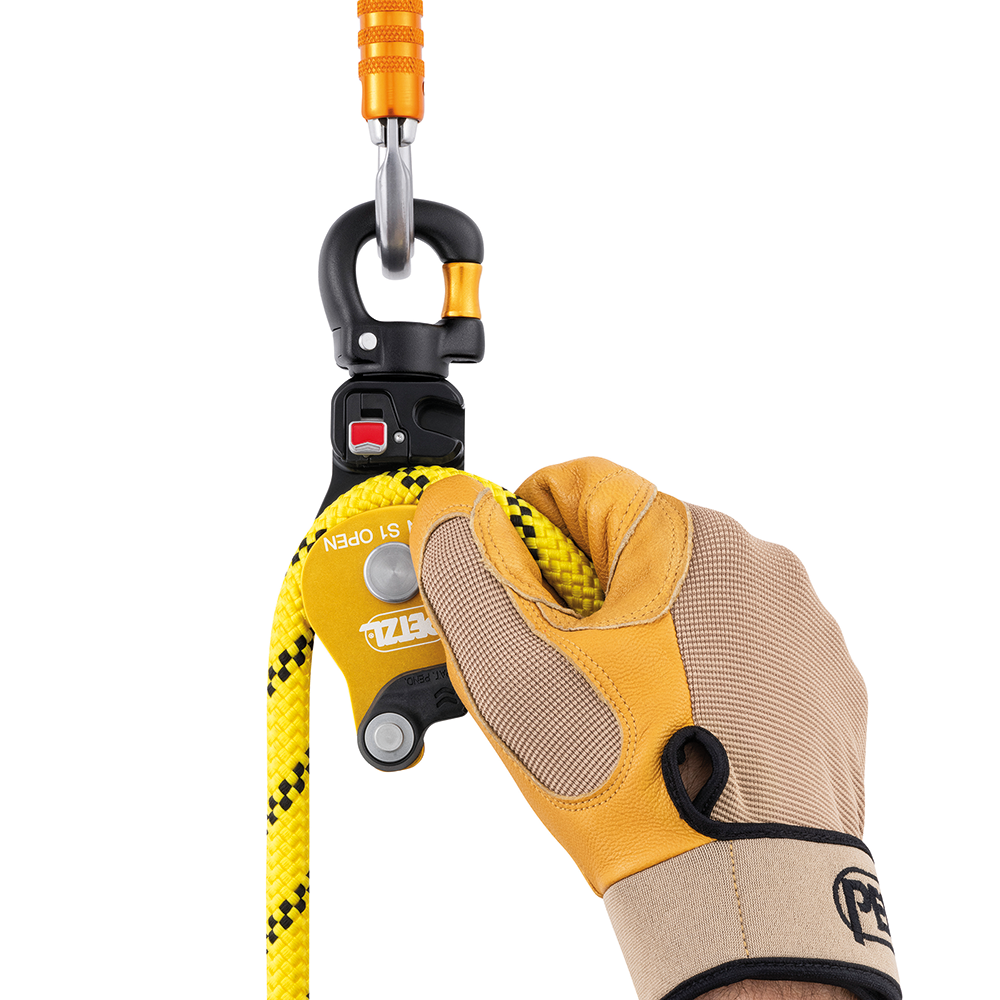

The rope can be installed with the device connected to the anchor
Red indicator provides a visual warning when the moving side plate is unlocked
Special side plate design protects the rope path

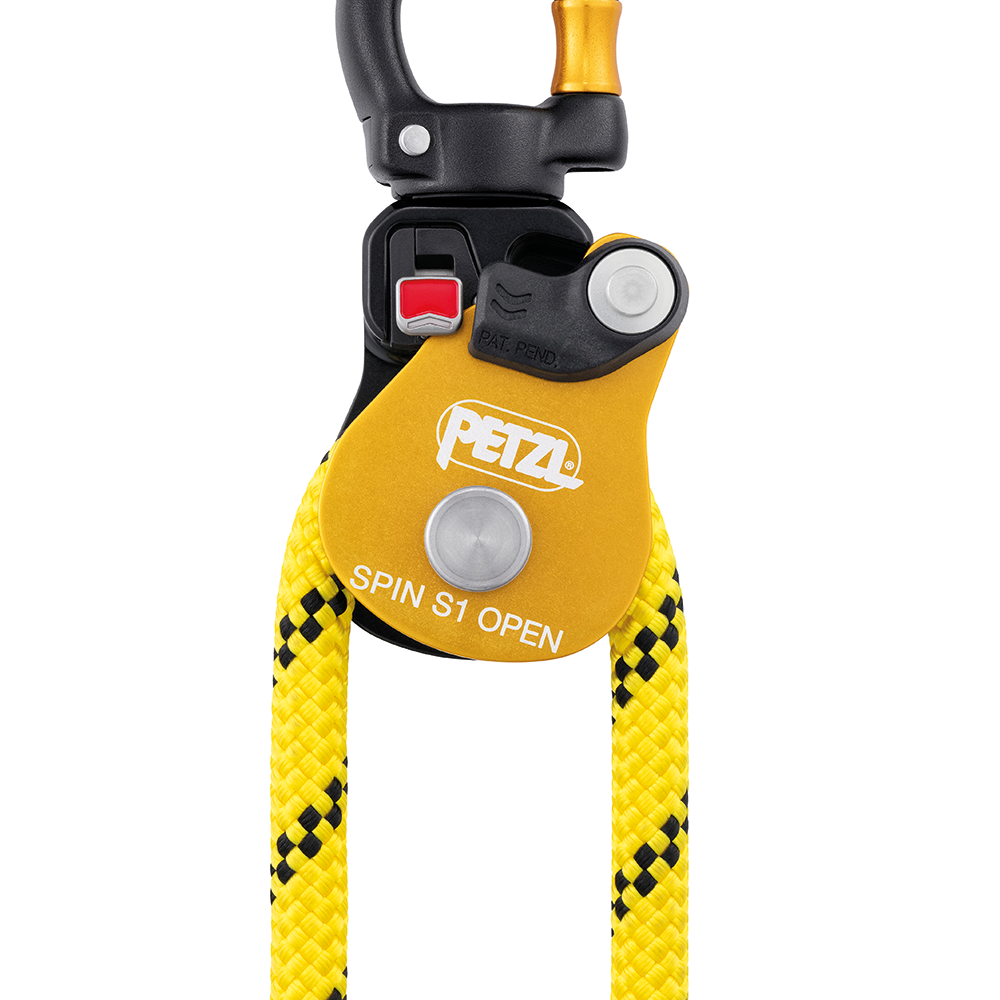

Mid-size diameter sheave mounted on sealed ball bearings for great efficiency

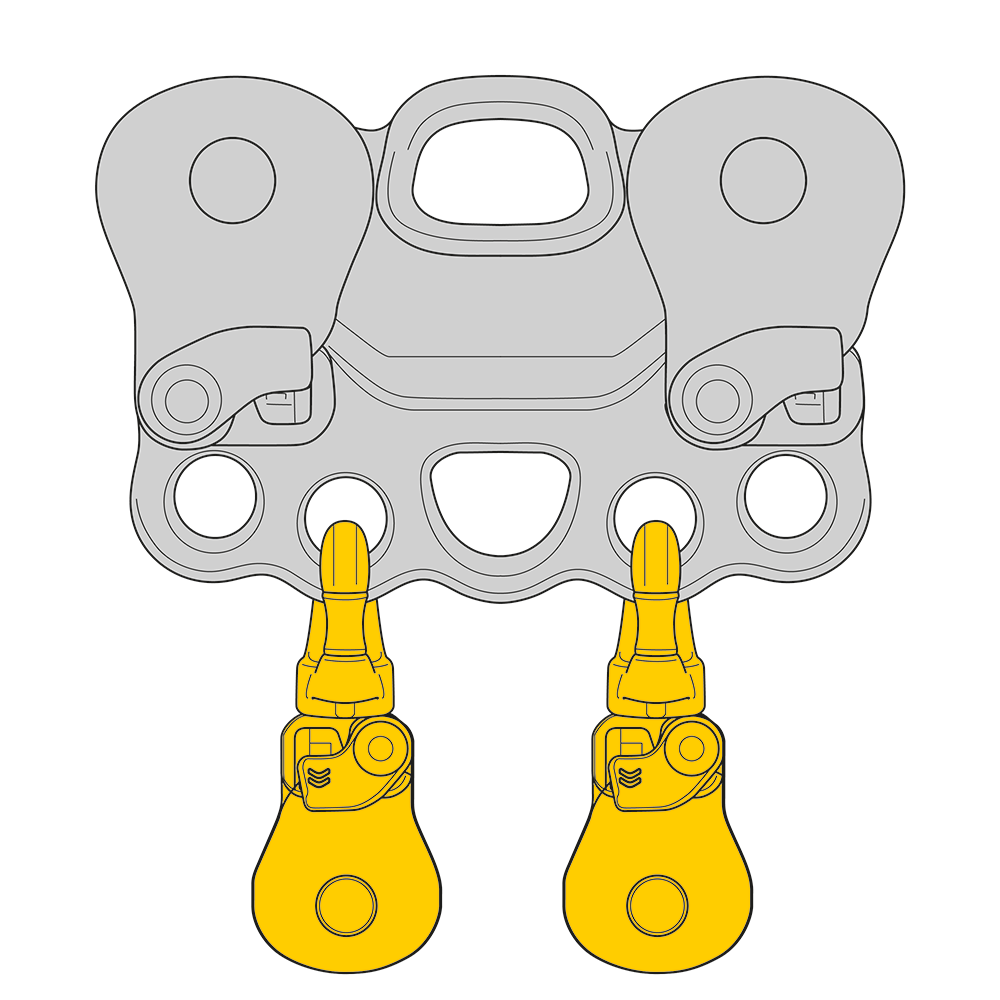

Bulk is minimized and large opening makes the pulley compatible with a wide variety of products (tripod, REEVE carriage pulley,
PAW rigging plate and more)
Allows pulley to be oriented under load
Accommodates up to two carabiners and allows the use of ropes and slings to facilitate rigging

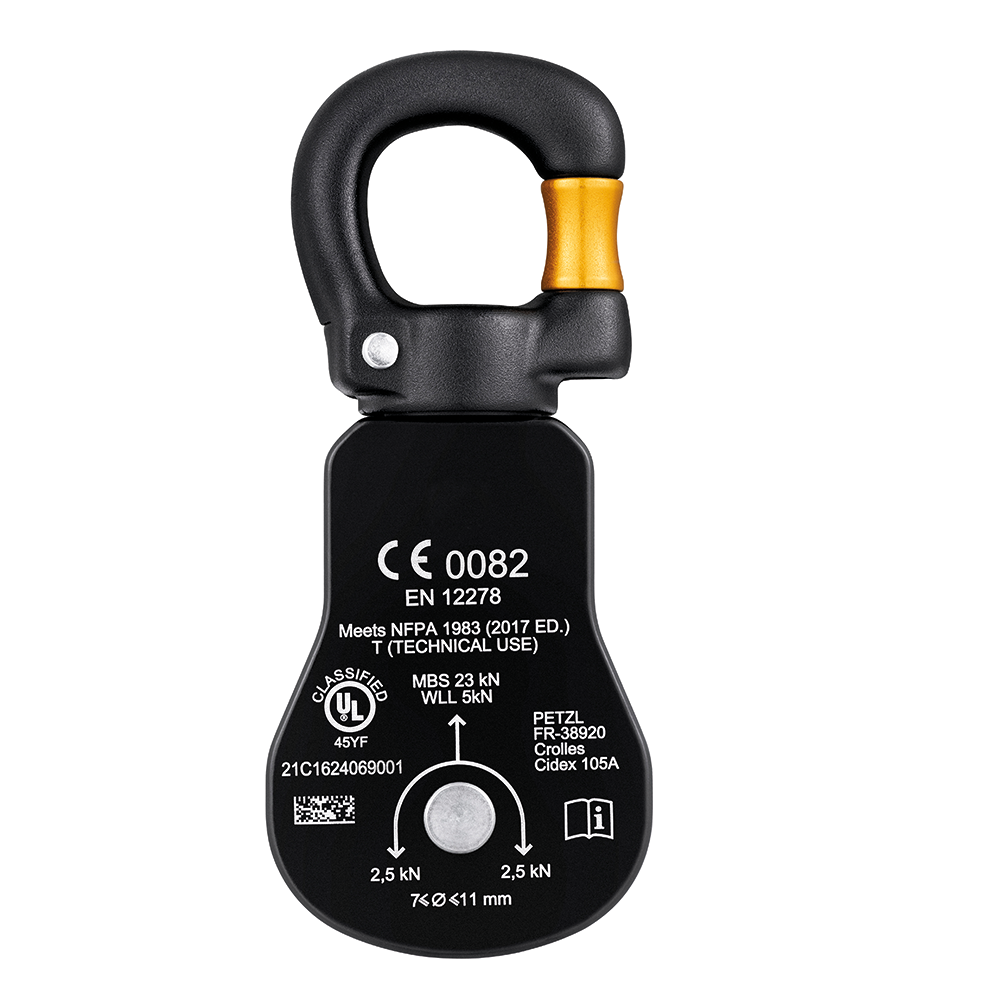

Certification(s): CE EN 12278, NFPA 2500 Pulley Technical Use, UIAA, XF 494:FZL-H-Q 9.5/11
Min. rope diameter: 7 mm
Max. rope diameter: 11 mm
Sheave type: Sealed Ball Bearings
Sheave diameter: 25 mm
Maximum working load: 2 x 2,5 = 5 kN
