Aluminum Carabiners
AAK Safety AS

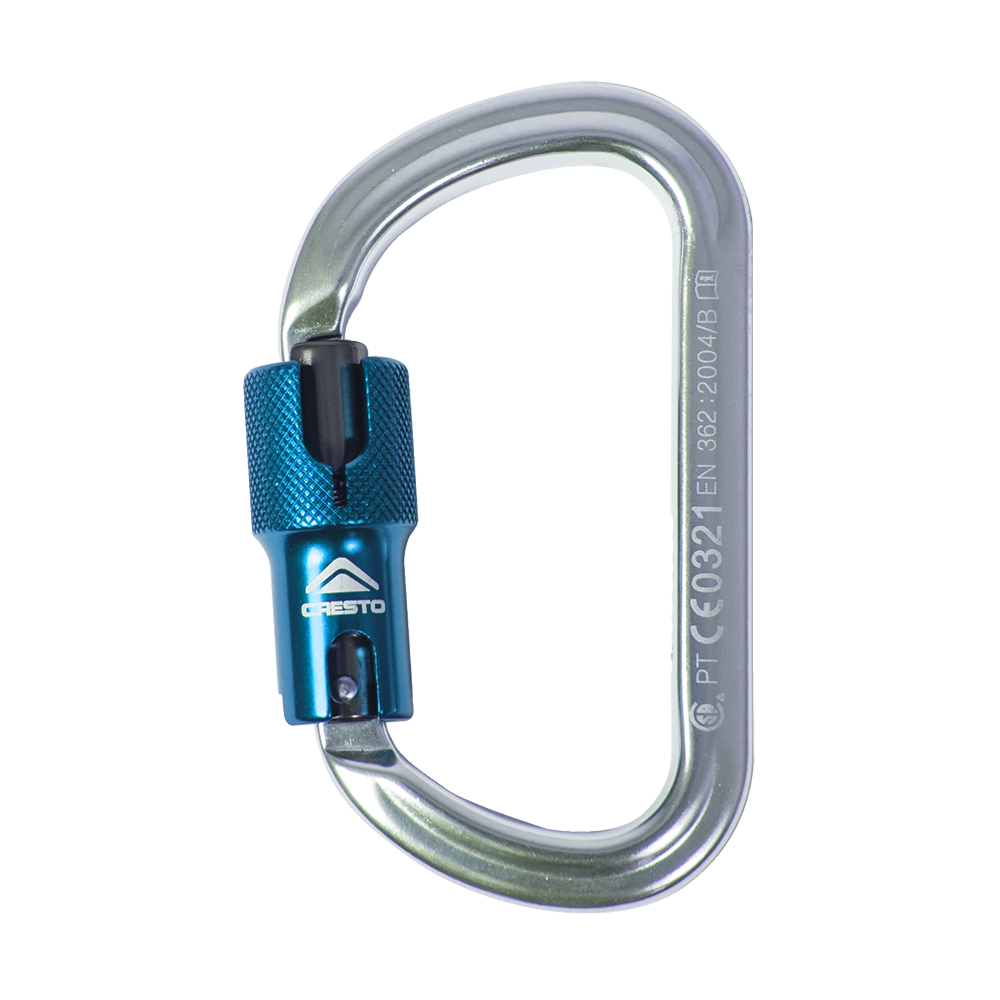

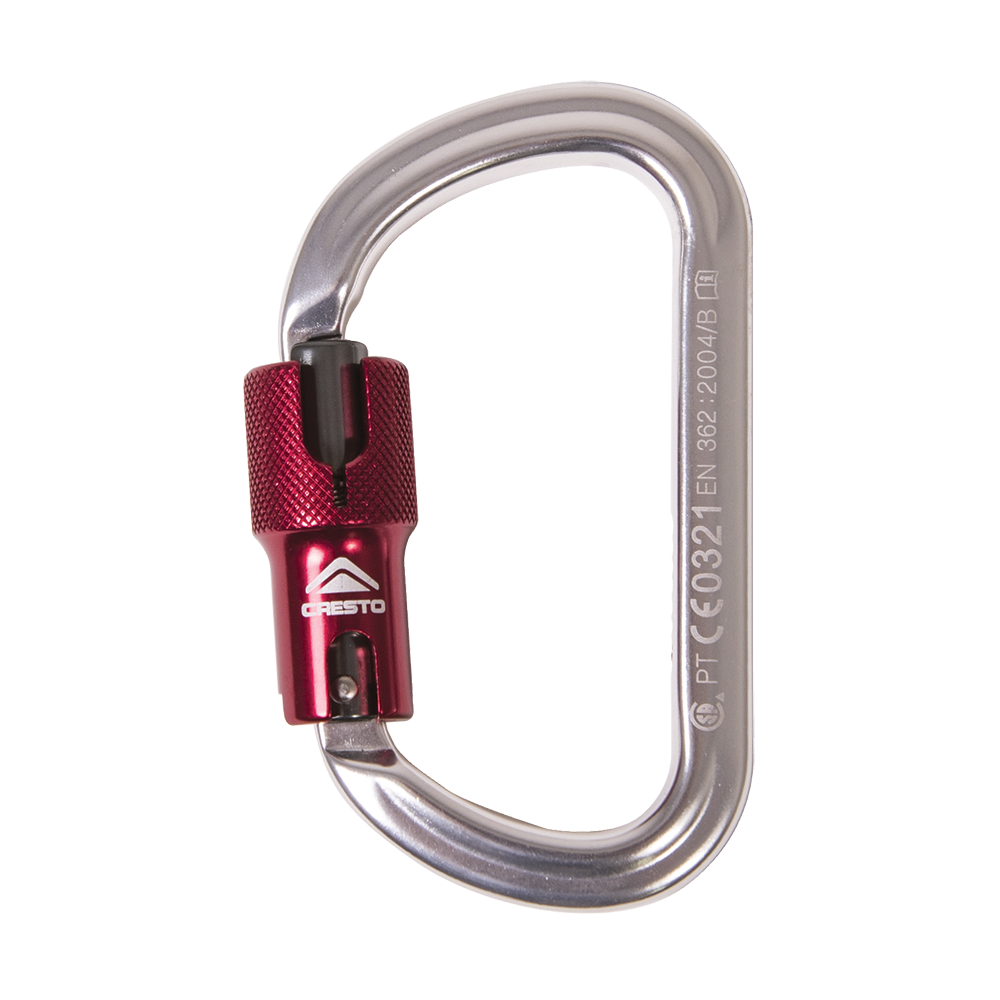

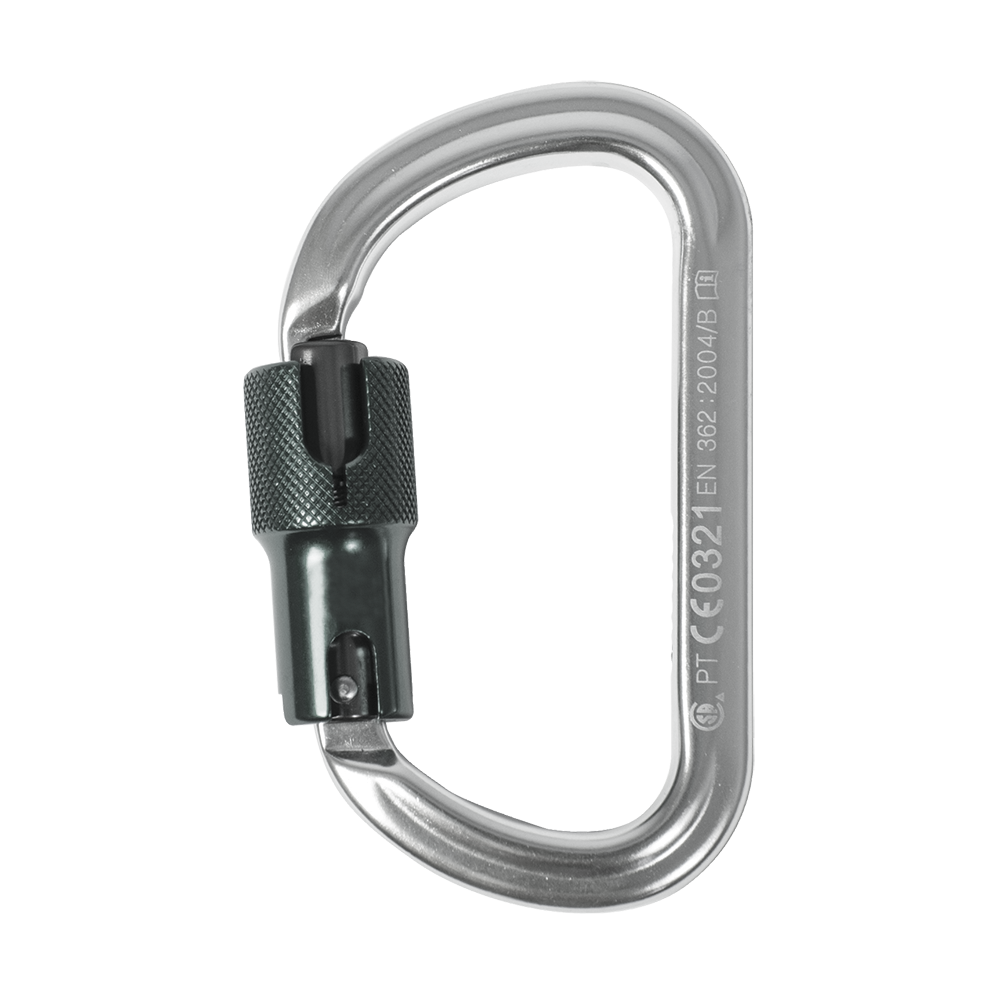

Alu-CTR-A D-shape

Carabiner 9684

Product number: 1175

Alu-CTR-A D-shape is an aluminum carabiner with 3-way locking.

ANSI and EN standard

D-shaped

Breaking strength 23 kN

Standards
EN 362 : 2004
ANSI Z359.1

6 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

Alu-CTR-A D-shape is a carbiner that is both ANSI and EN certified. It is made of aluminum and has a breaking strength of 23 kN.

Items

Reference
Length (cm)
Width (cm)
Net weight (kg)
Country of origin
24225 12.4 7.6 0.14 Slovakia

Technical data

Product properties
ProductPdfTemplate: Cresto Safety Product PDF
Brand: Cresto
Material: Aluminum
EN-standard: EN 362 : 2004
Other standards: ANSI Z359.1
Notified body: 0321, SATRA Technology Centre, Wyndham Way, Telford Way, NN16 8SD Kettering, Northamptonshire, United Kingdom
Annual inspection: Yes, every 12 months
RFID: No
Warranty: 2 year
Declaration of Conformity: Yes
Fall indicator: No
Minimum breaking strength - MBS (kN): 23
Energy absorber: No
Gate feature: 3-way
Gate opening (mm): 20
Gate strength (kN): 16
Adjustable under load: No

Product attachments

  • Alu-CTR-A D-shape - EC 20150201.pdf
    download
  • Alu-CTR-A D-shape - EU 20190421.pdf
    download
  • EU DECLARATION OF CONFORMITY No.N-2852G-TRCP / 9684.pdf
    download
Alu-CTR-A D-shape is a carbiner that is both ANSI and EN certified. It is made of aluminum and has a breaking strength of 23 kN.
  • Alu-CTR-A D-shape - EC 20150201.pdf
    download
  • Alu-CTR-A D-shape - EU 20190421.pdf
    download
  • EU DECLARATION OF CONFORMITY No.N-2852G-TRCP / 9684.pdf
    download
