Automatic descenders
AAK Safety AS

EPX Extended ODF

Evacuation device, vacuum bag + Box

Product number: 10354

The latest generation automatic device with superior properties.

Intuitive and easy to use

Ensures function at long and heavy descents

Water sealed brake housing

Standards
EN 341 : 2011
ANSI Z359.4-2013
CSA Z259.2.3-12

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

Special built kit for customer.
EPX is a intuitive and easy to use evacuation device for a applications within most areas. With a construction that ensures function at long and heavy descents and at the same time isolates heat from sensitive parts of the device.

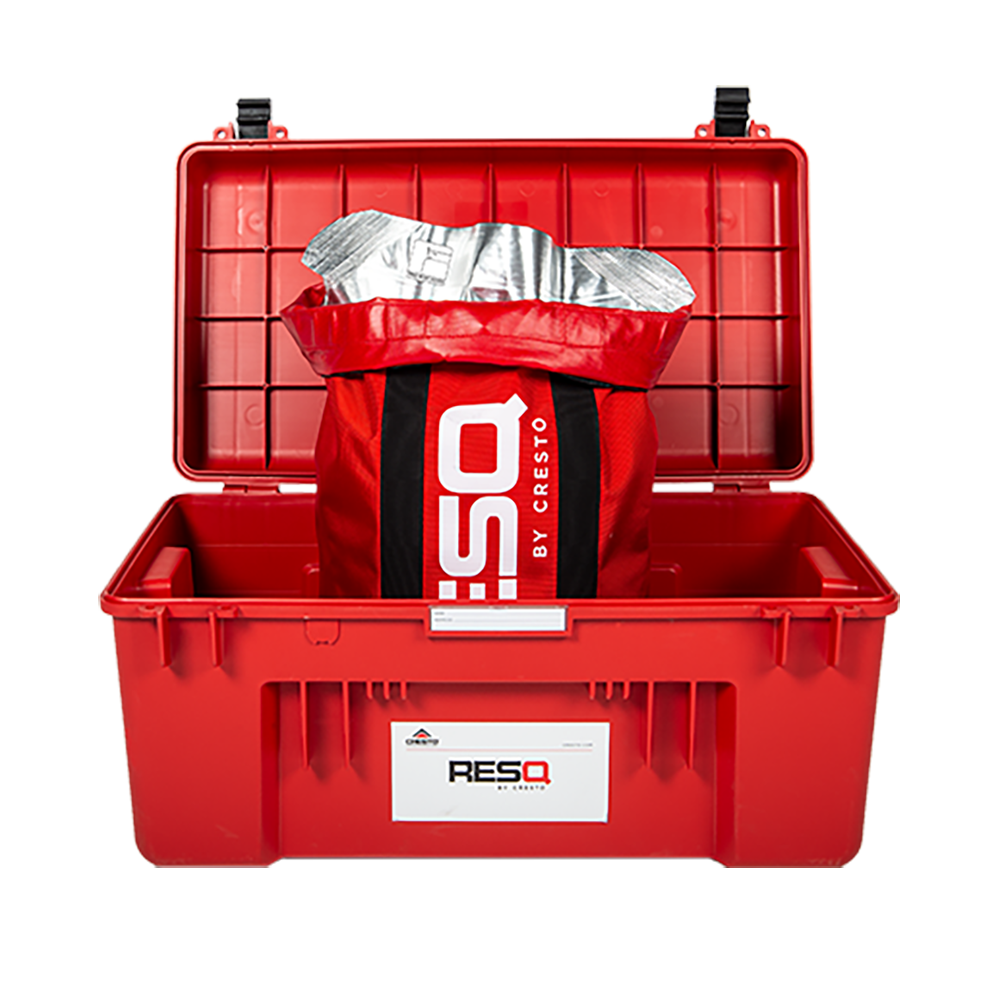

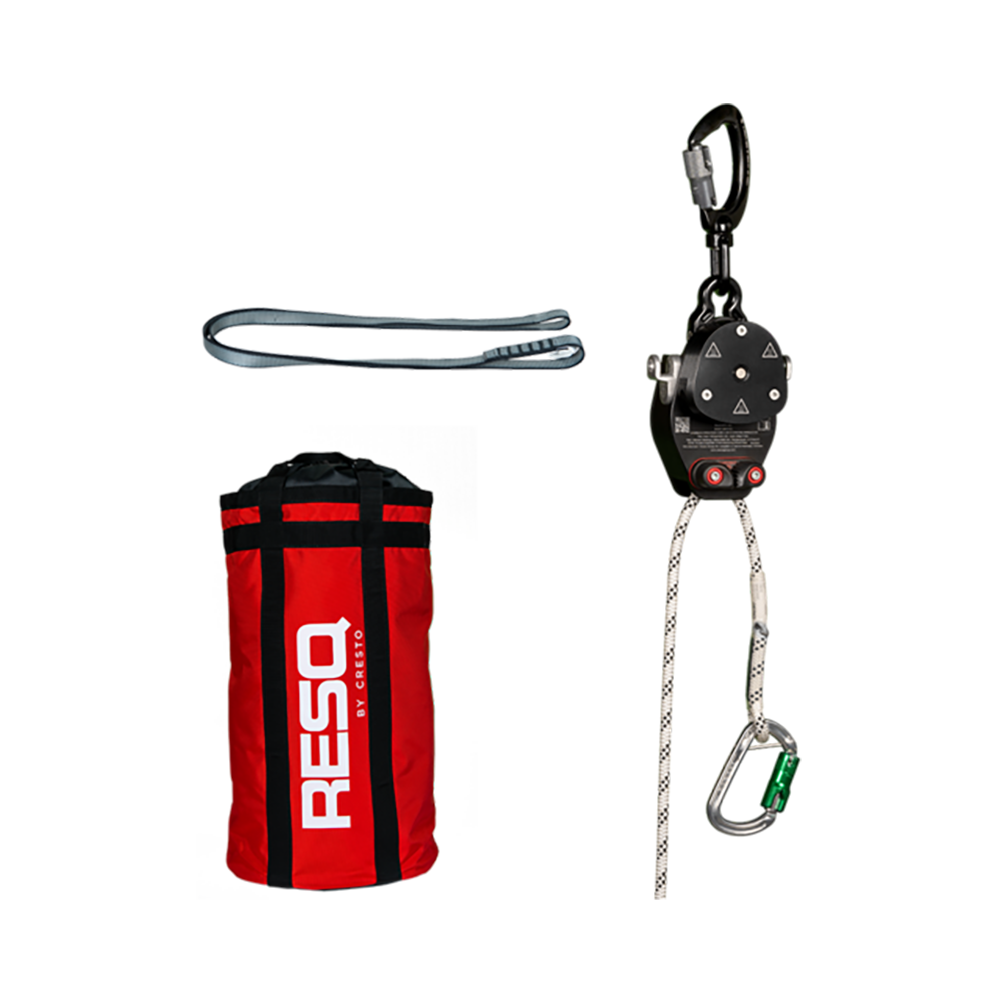

EPX Extended 25 meters is delivered as a complete set with anchorage sling and bag for quick access to the equipment. Vacum packed and in a box.

Items

Reference
Size (m)
Net weight (kg)
Country of origin
40961-ODF 25 7.2 Slovakia

Technical data

Product properties
Brand: RESQ
Material: Polyamide, Aluminum , Techno polymers
Minimum load (kg): 40
Maximum load (kg): 200
Maximum number of users: 2
Minimum working temperature (c): -30
Maximum working temperature (c): 50
EN-standard: EN 341 : 2011
Other standards: ANSI Z359.4-2013, CSA Z259.2.3-12
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 15 + 15 years. Product lifecycle 15 years + 15 after service
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Polyamide/polyamide 32-braided kermantel construction 9,6mm
Maximum rope length (m): 255
Fall indicator: No
Maximum descent: 255m
Descent speed (m/s): 0,9-1,6
Minimum breaking strength - MBS (kN): 20
Energy absorber: No
Gate feature: twist lock
Gate strength (kN): 16
Attaching connector 1: Device: Aluminum carabiner with swivel
Attaching connector 2: Rope: Aluminum carabiner
Functions: Descend function
Mechanics: Centrifugal brake
Adjustable under load: Yes
Special built kit for customer.
EPX is a intuitive and easy to use evacuation device for a applications within most areas. With a construction that ensures function at long and heavy descents and at the same time isolates heat from sensitive parts of the device.

EPX Extended 25 meters is delivered as a complete set with anchorage sling and bag for quick access to the equipment. Vacum packed and in a box.
