Manual
AAK Safety AS

AAK Taljesystem

Rescue kit for hoisting

Product number: 11169

The AAK hoist system is a rope-based manual system for hoisting or lowering personnel and equipment. The AAK hoist system is very suitable for use in connection with rescue operations.

Maximum load 250 kg

Replaceable parts

50m rope gives 12.5m lifting height

Standards
EN 12278 : 2007
EN 567 : 2013
EN 1891 : 1998

0 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Product description

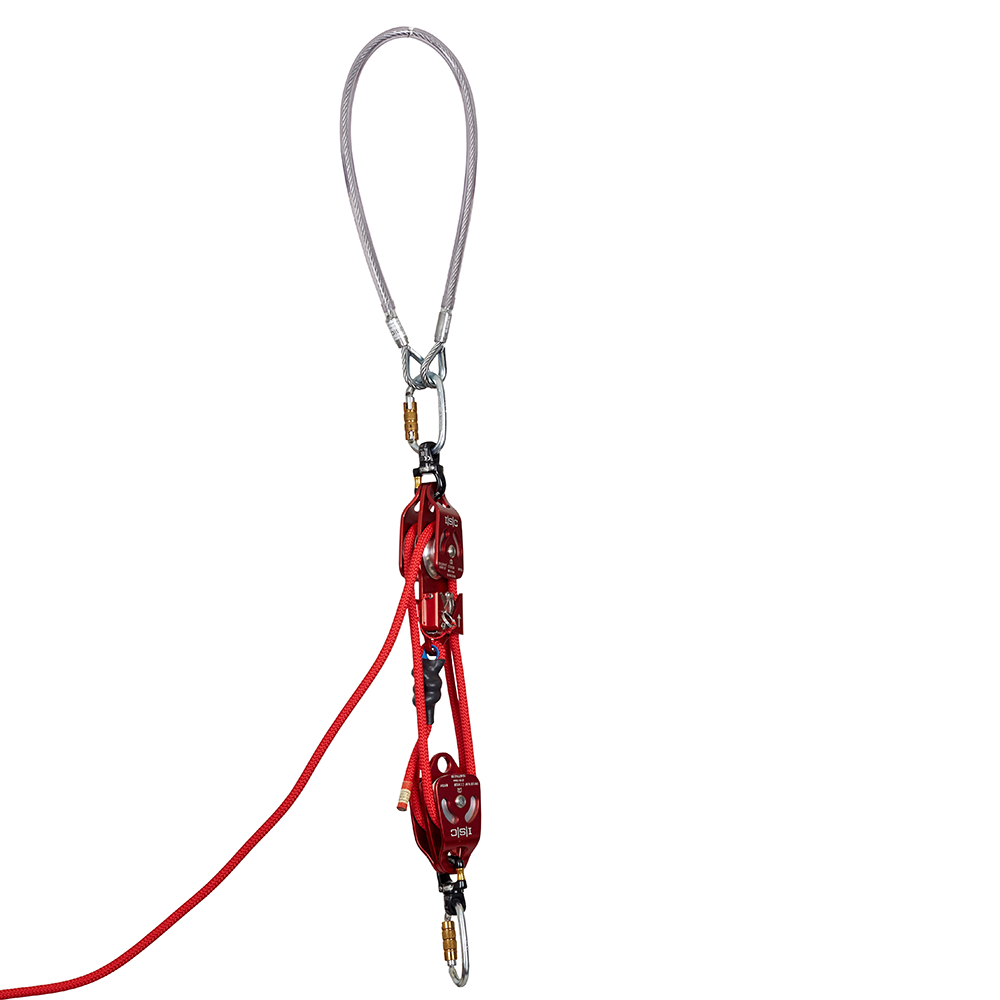

The AAK hoist system comes fully assembled and ready to use. The system consists of two double pulleys, one of which has a fixed rope lock that engages when hoisting to avoid losing the load. The system provides an exchange ratio of 1:4 when hoisting so that one person can hoist another.
Swivels mounted at the top and bottom to avoid rope twisting.
The recommended maximum load for the AAK Hoist System is 250 kg.

Items

Reference
Size (m)
Net weight (kg)
Country of origin
40310 12.5 7.5 United Kingdom

Technical data

Product properties
Brand: AAK
Min/Max load (kg): 250
Maximum load (kg): 250
EN-standard: EN 12278 : 2007, EN 567 : 2013, EN 1891 : 1998
Notified body: 0598, SGS Fimko Ltd, Takomotie 8, FI-00380 Helsinki, Finland
Annual inspection: Yes, every 12 months
Life span: 10 years
RFID: No
Warranty: 2 year
Functions: Descend function, Lifting function

Product attachments

  • Aak Rescue kit for hoisting User Manual
    download
The AAK hoist system comes fully assembled and ready to use. The system consists of two double pulleys, one of which has a fixed rope lock that engages when hoisting to avoid losing the load. The system provides an exchange ratio of 1:4 when hoisting so that one person can hoist another.
Swivels mounted at the top and bottom to avoid rope twisting.
The recommended maximum load for the AAK Hoist System is 250 kg.
