AAK Safety AS

Petzl JAG System

Haul kit

Product number: 5340

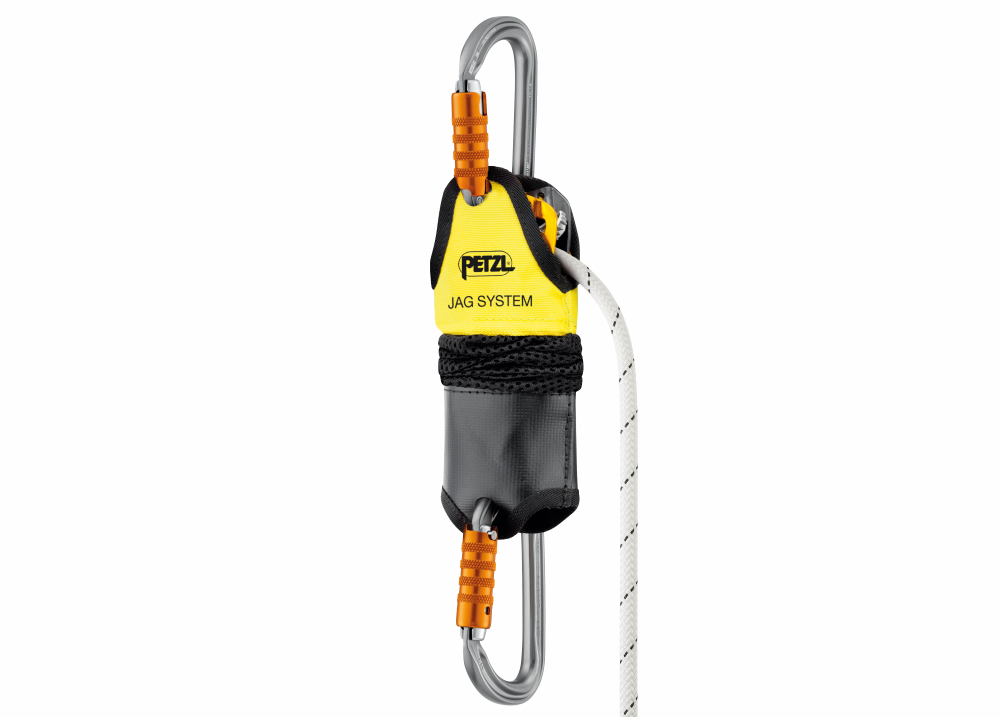

The JAG SYSTEM haul kit for pickoffs, making a releasable anchor, or tensioning a system, thanks to its 4:1 mechanical advantage

4:1 mechanical advantage

Kit always ready to use

Standards
EN 358 : 2018

14 In stock

Quantity:

Print

Do you miss something?

Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.

Videos

Product description

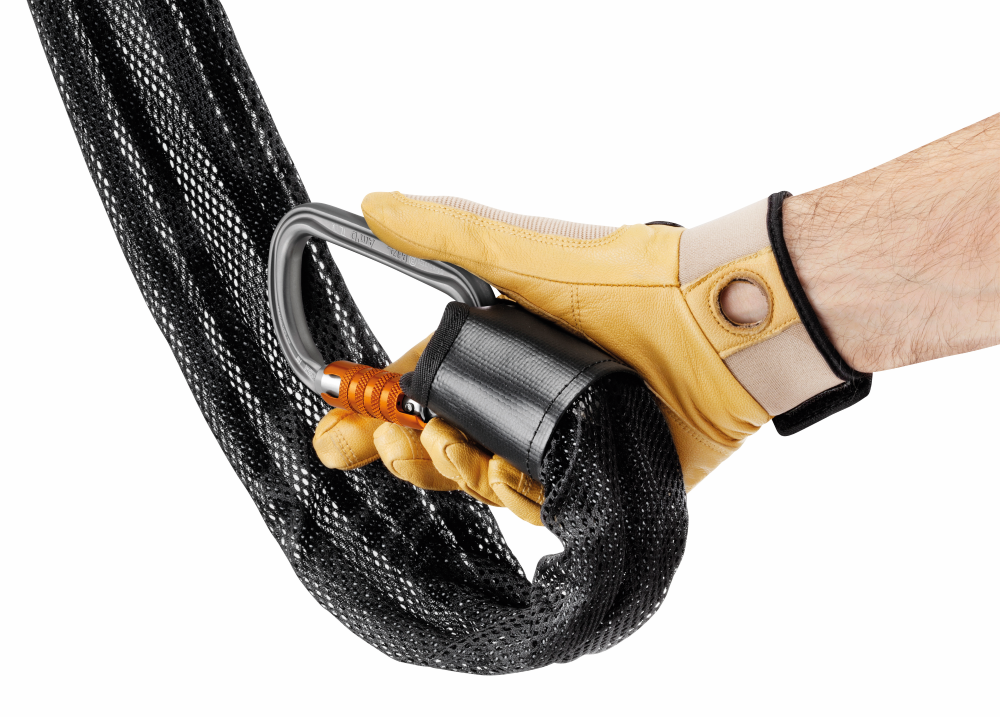

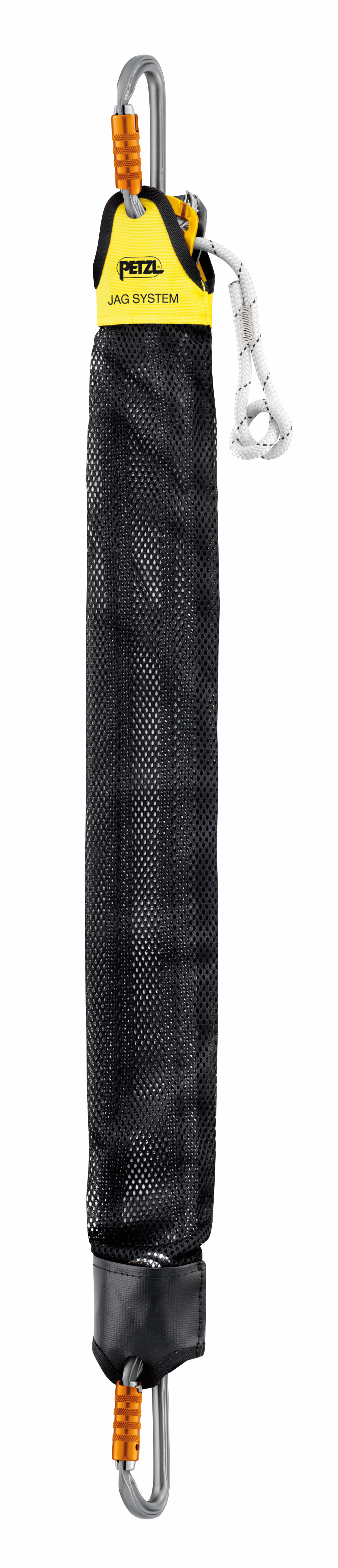

The collapsed kit is highly compact, allowing it to be used even when the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color-coded for instant identification. It is available in three lengths: 1, 2 and 5 meters.

Items

Reference
Size (m)
Net weight (kg)
Country of origin
28513-100 1 0.61 France
28513-200 2 0.805 France
28513-500 5 1.46 France

Technical data

Product properties
Brand: Petzl
Material: Aluminum , Nylon
Maximum load (kg): 600
EN-standard: EN 358 : 2018
Notified body: 0082, SAS APAVE SUDEUROPE - CS 601193, 13322 Marseille cedex 16, France
Annual inspection: Yes, every 12 months
Life span: 10 years
Declaration of Conformity: Yes
Functions: Descend function, Lifting function

Product attachments

  • technical-notice-JAG-SYSTEM-1 (15).pdf
    download
  • UE-Declaration-P044AAXX-JAG SYSTEM (3).pdf
    download
