Rope ascenders & rope winches
AAK Safety AS

EDER Ascender battery

EPC 240-11 B

Product number: 8347

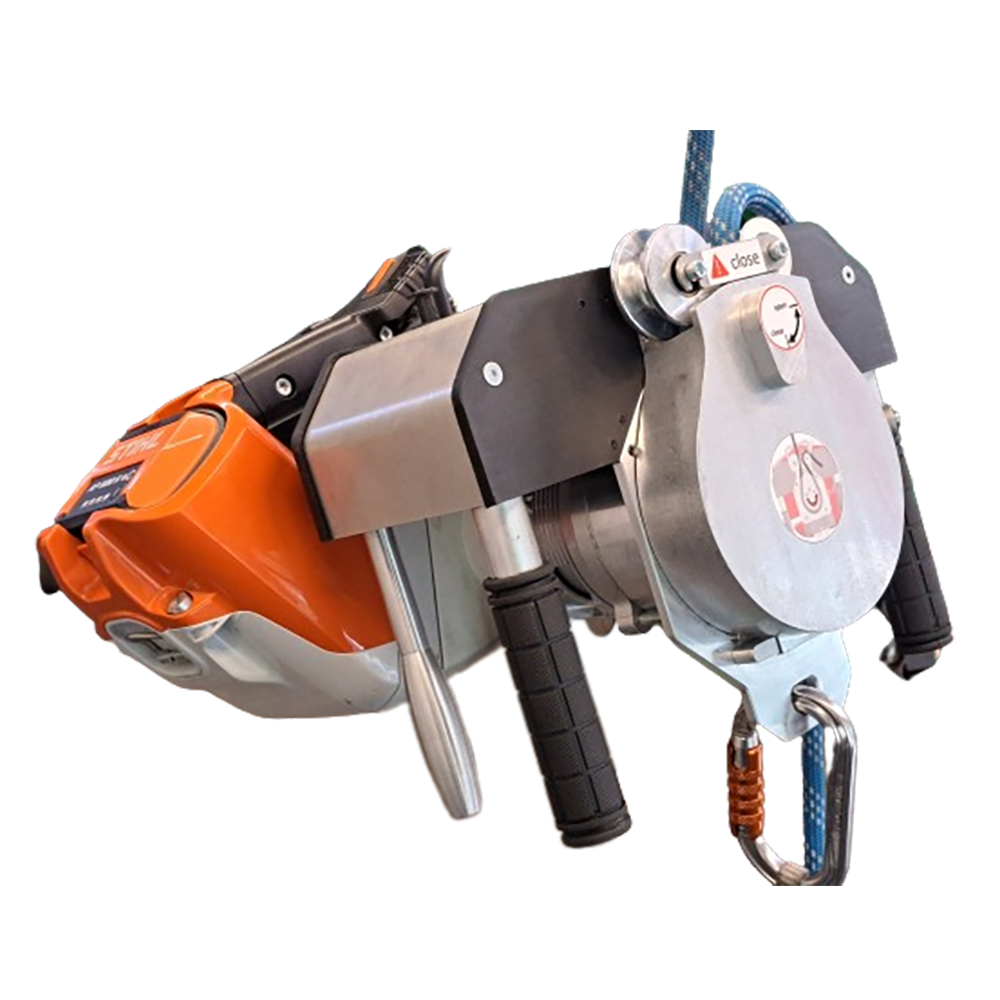

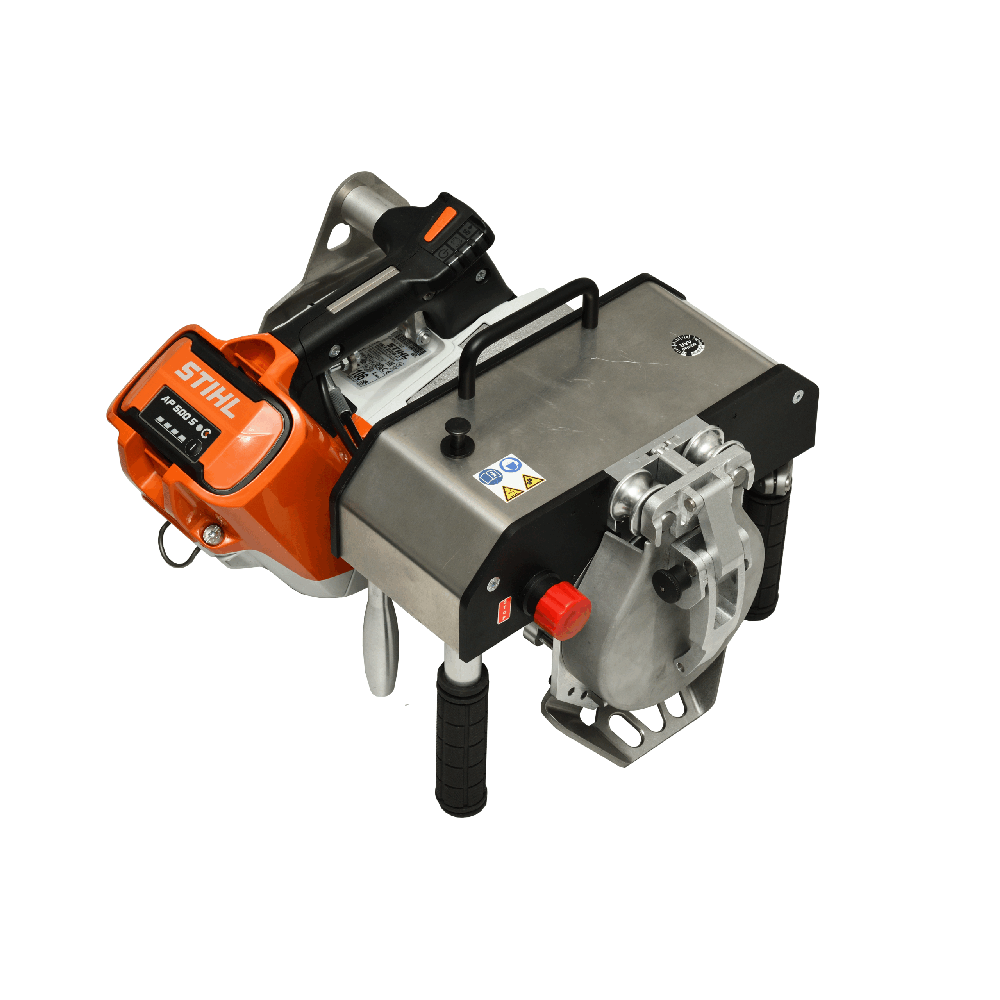

EDER – Power Climber EPC240-11 B with STIHL battery.

Max. permissible load 240 kg (2 personer)

Stihl battery

Standards
2006/42/EC

4 In stock

Print

AAK Safety webshop?

Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!

Product description

Battery version from EDER, for maximal permissible load of 240 kg (2 personer) and use of standard Stihl battery. Unique in that you use a standard battery which you can buy "anywhere".

Max. permissible load: 240 kg (max. 2 persons)
Weight: 11,5 kg
Ascent speed: Max. 0.4 m/s (240 kg), Max. 0,6 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Plus 11mm
Dimensions: 30x28x39 cm
Engine type: Electric

Items

Reference
Net weight (kg)
Country of origin
35098-EL 10.5 Germany

Technical data

Product properties
Brand: Eder
Maximum load (kg): 240
Maximum number of users: 2
EN-standard: 2006/42/EC
Notified body: 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany
Annual inspection: Yes, every 12 months
RFID: No
Declaration of Conformity: Yes
Descent speed (m/s): 0,3 m/s
Functions: Descend function, Lifting function, Vinch function

Product attachments

  • EDER Ascender battery user manual (EN).pdf
    download
  • EDER Ascender battery user manual (NO).pdf
    download
Battery version from EDER, for maximal permissible load of 240 kg (2 personer) and use of standard Stihl battery. Unique in that you use a standard battery which you can buy "anywhere".

Max. permissible load: 240 kg (max. 2 persons)
Weight: 11,5 kg
Ascent speed: Max. 0.4 m/s (240 kg), Max. 0,6 m/s (130 kg)
Descent speed: 0.3 m/s
Rope: Teufelberger Patron Plus 11mm
Dimensions: 30x28x39 cm
Engine type: Electric
  • EDER Ascender battery user manual (EN).pdf
    download
  • EDER Ascender battery user manual (NO).pdf
    download
