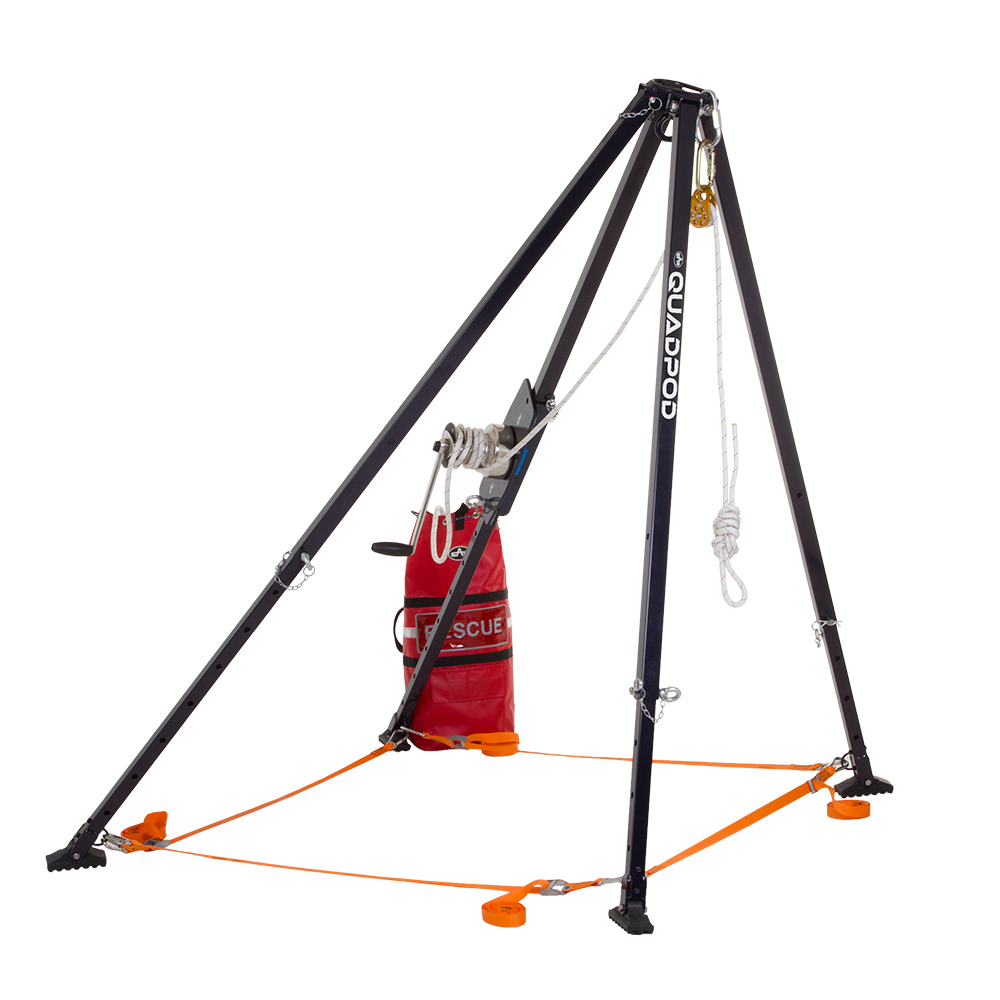

SAR Quadpod
Designed initially as a more stable version of the traditional tripod, the Quadpod is now recognised worldwide as the standard portable anchor for use in many rescue situations.
SAR Quadpod Vinsj
Sar Quadpod Vinsj Komp
Product number: 6595

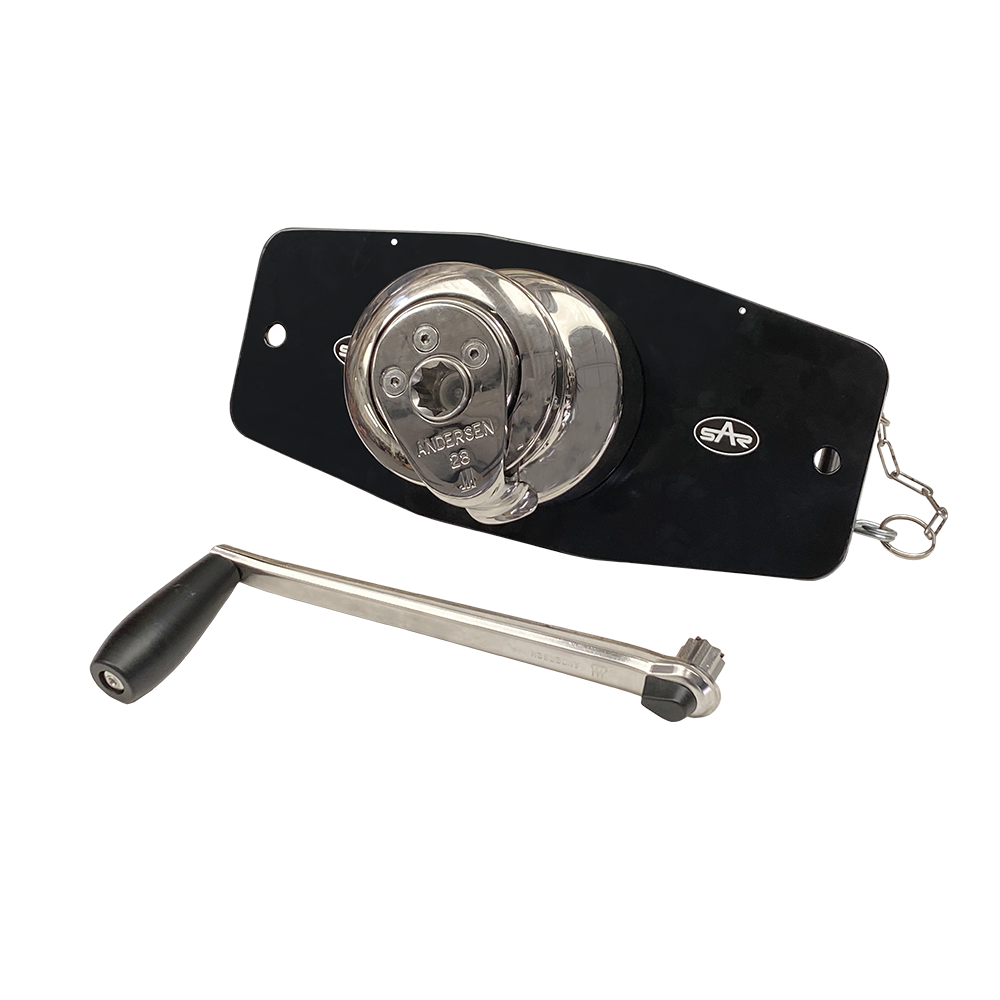

The Winch can be mounted onto the legs of the Quadpod and the Multipod using the supplied winch plate to form part of a rescue or hauling system.
Two ratios – 9.5:1 & 28.6:1
Winch plate, pins and storage bag included as standard.
Winch – Stainless steel casing & drum; brass workings
AAK Safety webshop?
Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!
Compatible products
SAR Evac Body Splint
The updated EVAC Body Splint features a thicker, more abrasion resistant lower skin. Alongside this is a new lightweight upper skin which maintains the overall low weight.
Being a capstan winch, load limits are determined by factors such as type/diameter of rope, number of turns on the drum, etc. During tests with our 11mm Low Stretch Rope and 2 turns on the drum, the rope started to slip at around 250kg so as not to overload the system components.
As well as on the leg of a Quadpod or Multipod, the Winch can be used independently when attached to a suitable anchor. It may also be used with a power drill and a suitable adapter
A back up system must always be used with the Winch when used for lifting persons. We strongly recommend that users are trained in the correct operation of the Winch, so that they can understand its uses and limitations.
Materials:
Mounting bracket – Powder coated aluminium
Pins – Steel
As well as on the leg of a Quadpod or Multipod, the Winch can be used independently when attached to a suitable anchor. It may also be used with a power drill and a suitable adapter
A back up system must always be used with the Winch when used for lifting persons. We strongly recommend that users are trained in the correct operation of the Winch, so that they can understand its uses and limitations.
Materials:
Mounting bracket – Powder coated aluminium
Pins – Steel
