SAR Quadpod Vinsj
The Winch can be mounted onto the legs of the Quadpod and the Multipod using the supplied winch plate to form part of a rescue or hauling system.
SAR Quadpod
Quadpod Stativ
Product number: 6109

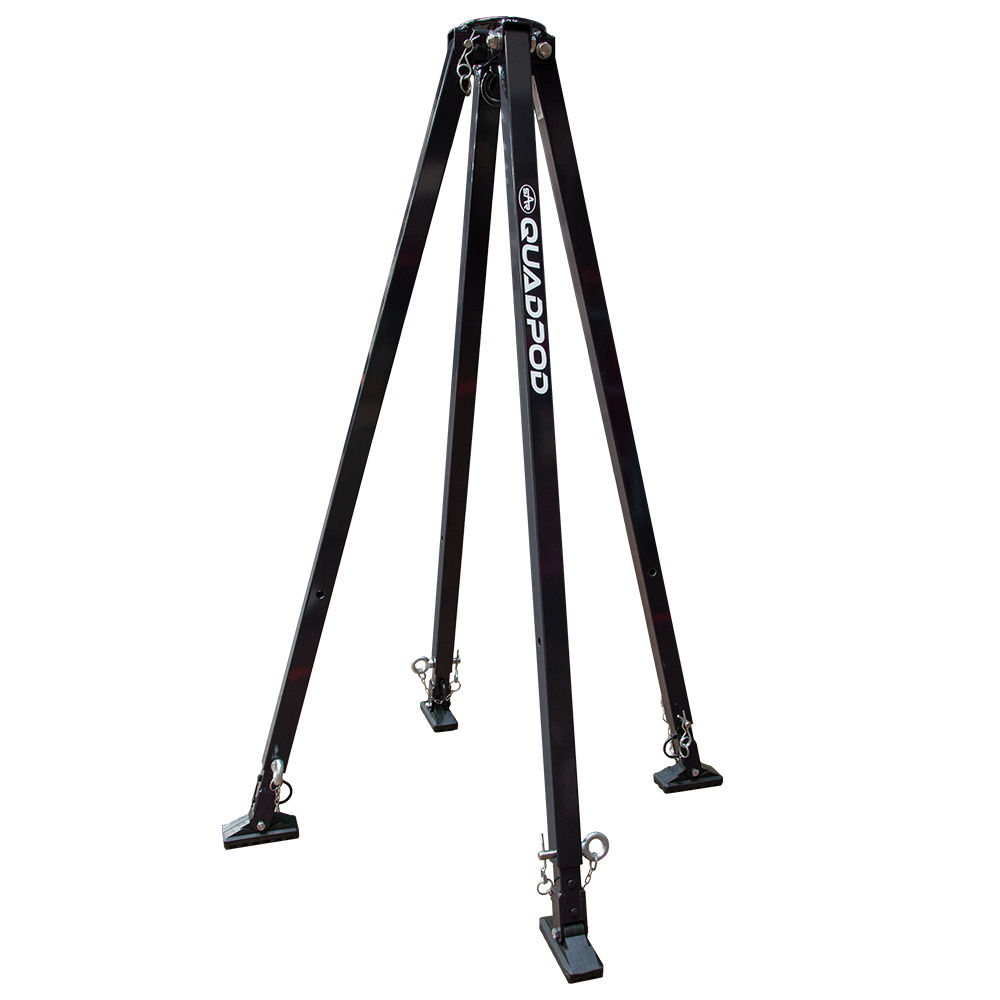

Designed initially as a more stable version of the traditional tripod, the Quadpod is now recognised worldwide as the standard portable anchor for use in many rescue situations.
Rated for 4 person load
WLL in standard pyramid configuration: 400kg
Legs – Powder coated aluminium
AAK Safety webshop?
Our online store is only available for registered business customers, not for private individuals. Don't have an account yet? Register by clicking on log in at the top of the page!
Compatible products
UK Coastguard, Mountain Rescue Teams and industrial confined space rescue teams are just some examples of the agencies using the Quadpod.
Configurable in different modes, the Quadpod offers versatility when accessing confined spaces, over parapets and multiple other scenarios. The head of the Quadpod offers several connection options, allowing hauling or lowering systems to be set up with ease. The optional Quadpod Winch can be fixed to one of the legs for even more efficient extrication (available for purchase separately).
The adjustable legs are fitted with non-slip rubber feet, which are suitable for use on most surfaces.

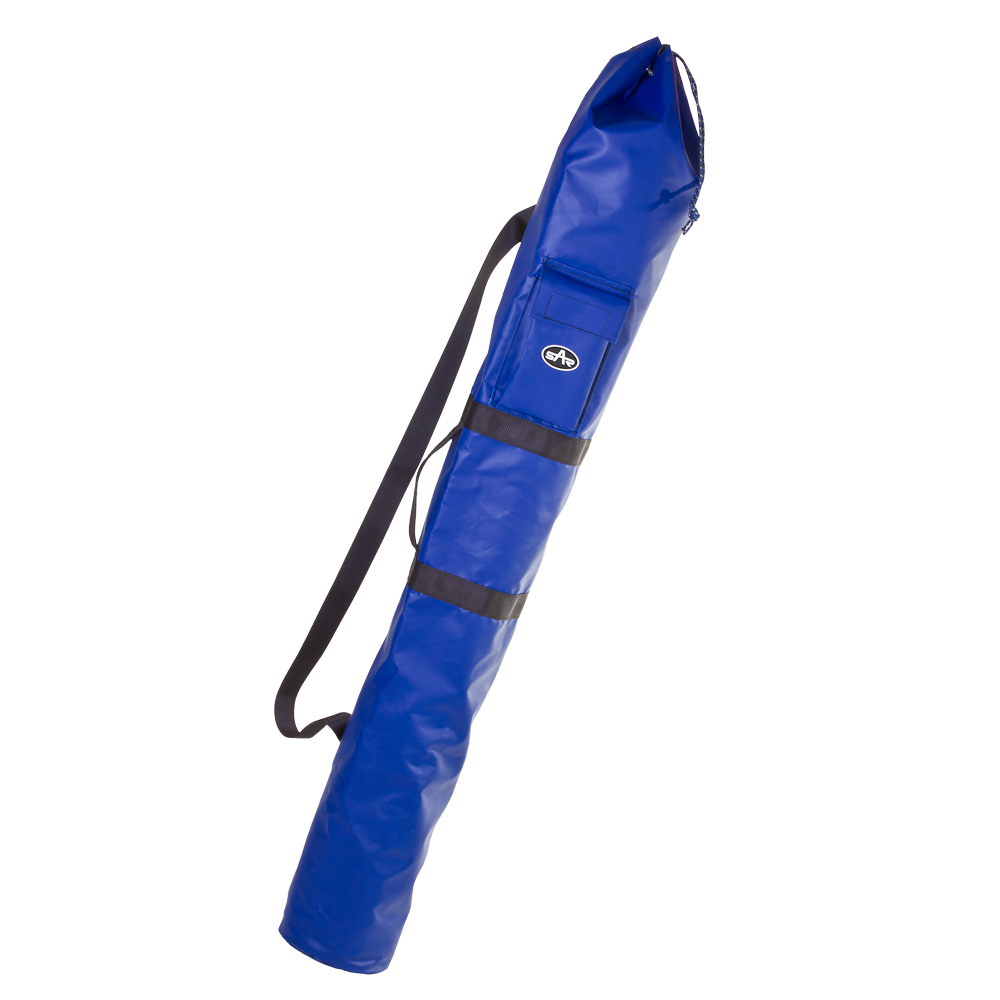

Supplied with leg straps and storage bag (also available separately).
We recommend training on the Quadpod to fully understand it’s many uses.
Specifications:
Head/ main connection points – Stainless steel
Pins – Steel
Feet – Non-slip rubber
Straps – High grade polyester with steel mini karabiners
Max height in pyramid configuration: 2.0m
Size when packed in bag: 1.2m x 17cm
Weight including straps: 13.8kg
Configurable in different modes, the Quadpod offers versatility when accessing confined spaces, over parapets and multiple other scenarios. The head of the Quadpod offers several connection options, allowing hauling or lowering systems to be set up with ease. The optional Quadpod Winch can be fixed to one of the legs for even more efficient extrication (available for purchase separately).
The adjustable legs are fitted with non-slip rubber feet, which are suitable for use on most surfaces.
Supplied with leg straps and storage bag (also available separately).
We recommend training on the Quadpod to fully understand it’s many uses.
Specifications:
Head/ main connection points – Stainless steel
Pins – Steel
Feet – Non-slip rubber
Straps – High grade polyester with steel mini karabiners
Max height in pyramid configuration: 2.0m
Size when packed in bag: 1.2m x 17cm
Weight including straps: 13.8kg
SAR Quadpod Vinsj
The Winch can be mounted onto the legs of the Quadpod and the Multipod using the supplied winch plate to form part of a rescue or hauling system.
-
Quadpod user manual.pdfdownload
