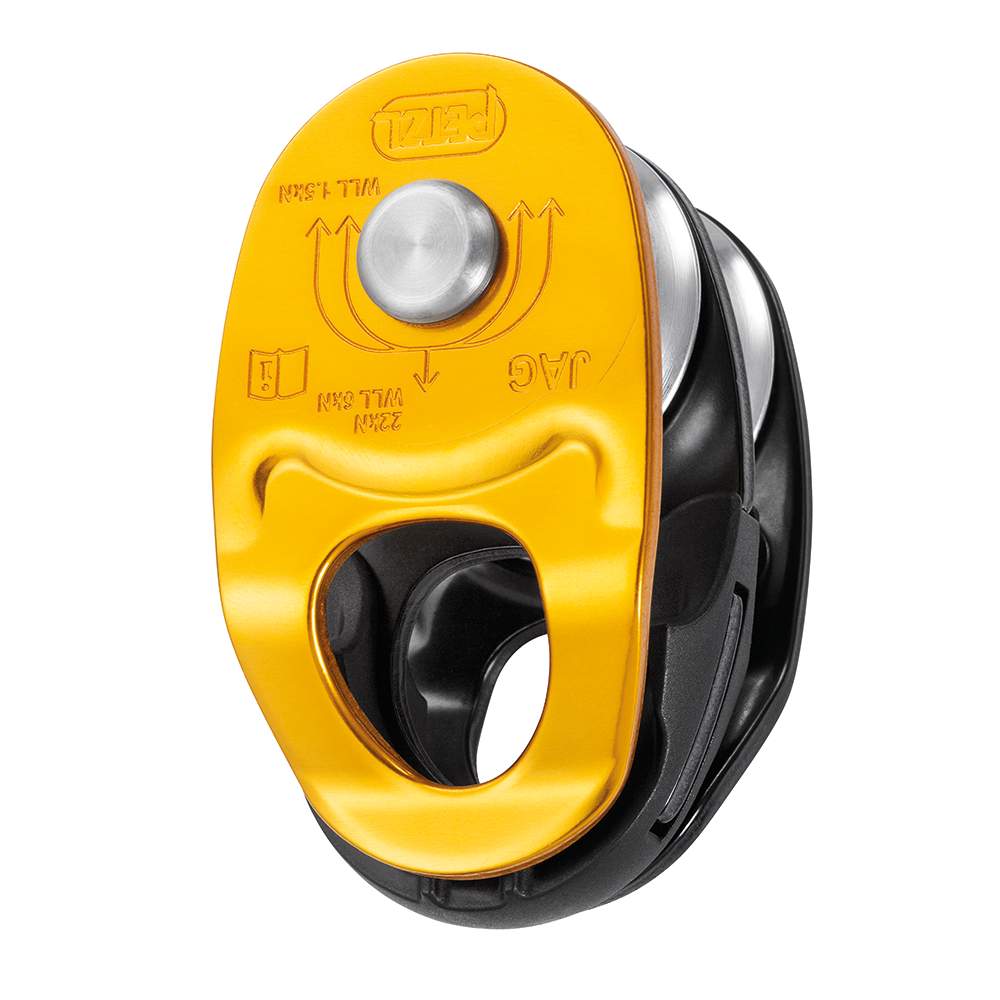

Petzl JAG pulley
High-efficiency double pulley
Product number: 10574
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.
Sealed ball bearings
Efficiency: 91 %
Sheave diameter: 25 mm
Do you miss something?
Missing items? We have just launched our new website. Please inform us if there are items that you are missing in our webshop by sending us an e-mail at post@aaksafety.no or use the contact us function at the top of the page.
Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
Sheaves mounted on sealed ball bearings for excellent efficiency
Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Sheaves mounted on sealed ball bearings for excellent efficiency
Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
